The maximum current that can be drawn from the output of the TPS2412DRG4 is 1.5A, but it's recommended to limit the output current to 1A for reliable operation and to prevent overheating.
To ensure proper power-up and configuration, follow the recommended power-up sequence: apply VCC, then apply VIN, and finally apply EN. Also, make sure to connect the EN pin to a valid logic level (either GND or VCC) to enable or disable the device.
The EN (enable) pin is used to enable or disable the TPS2412DRG4. When EN is high (VCC), the device is enabled, and when EN is low (GND), the device is disabled. Use the EN pin to control the power state of the device, for example, to implement power-saving modes or to reset the device.
To handle thermal management, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or a thermal pad. Also, follow the recommended operating temperature range (-40°C to 85°C) and avoid exceeding the maximum junction temperature (150°C).
The TPS2412DRG4 is a high-current, low-dropout linear regulator with a wide input voltage range (2.7V to 5.5V) and a low quiescent current (IQ). It's similar to other devices like the TPS2375, but with a higher output current capability and a more comprehensive set of protection features.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2412DRG4 Overview

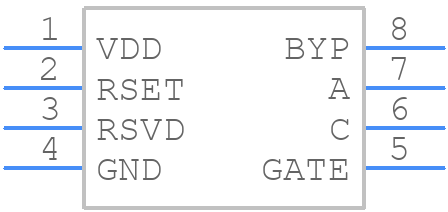

Use the download button to access the TPS2412DRG4 schematic symbol, PCB footprint, and 3D model.
