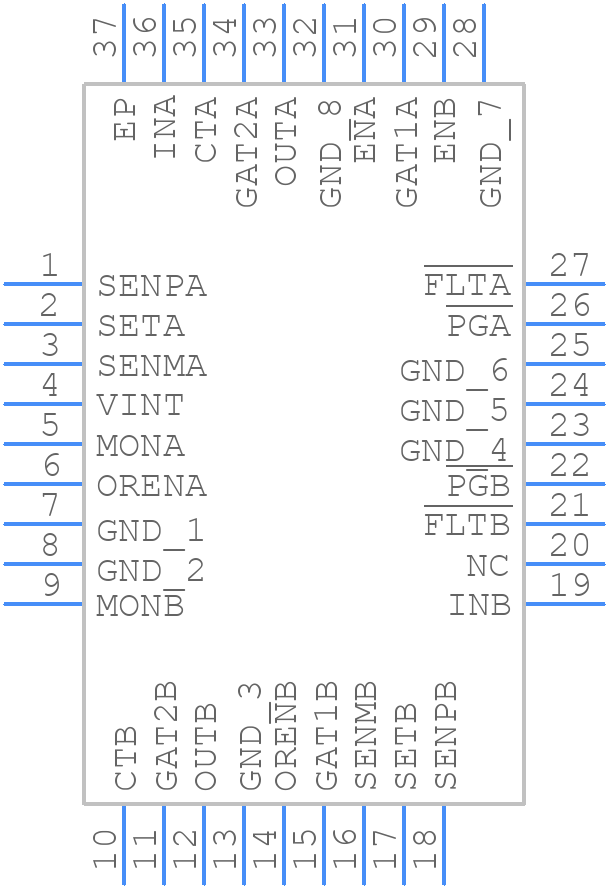

TPS2456RHHT - Texas Instruments

TPS2456RHHT Details

• Manufacturer Part Number:

  TPS2456RHHT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  36

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  THRESHOLD VOLTAGE IS 1.35 V

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  POWER SUPPLY SUPPORT CIRCUIT

• Input Voltage-Max:

  15 V

• Input Voltage-Min:

  8.5 V

• JESD-30 Code:

  S-PQCC-N36

• JESD-609 Code:

  e4

• Length:

  6 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  2

• Number of Functions:

  2

• Number of Terminals:

  36

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  500 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC36,.25SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Current-Max (Isup):

  4 mA

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Min (Vsup):

  8.5 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +1.35V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6 mm
