The maximum operating temperature range for the TPS2459RHBR is -40°C to 125°C.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by EN. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to place the device close to the power source. Also, ensure that the input and output capacitors are placed close to the device and that the PCB traces are as short as possible.
To troubleshoot issues with the TPS2459RHBR, start by checking the input voltage and current, as well as the output voltage and current. Also, verify that the device is properly configured and that the EN pin is properly driven. If the issue persists, check for any signs of overheating or physical damage to the device.
Yes, the TPS2459RHBR is designed to meet the requirements of high-reliability and safety-critical applications. It has been qualified to various industry standards, including AEC-Q100 and IEC 60747-1. However, it is still important to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2459RHBR Overview

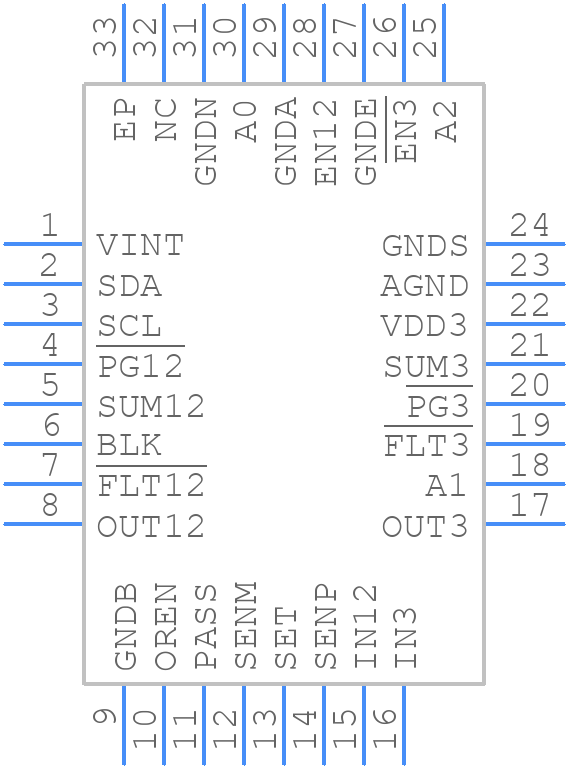

Use the download button to access the TPS2459RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
