TPS24701DGK - Texas Instruments

Description: 2.5V to 18V High Efficiency Hot-Swap Controller

Download TPS24701DGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

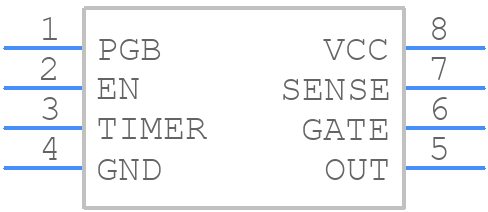

TPS24701DGK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS24701DGK - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK
click to zoom
3D Models
TPS24701DGK - Texas Instruments - 3D model - Small Outline Packages - DGK
click to zoom

TPS24701DGK Details

  • Manufacturer Part Number:

    TPS24701DGK

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP, TSSOP8,.19

  • Pin Count:

    8

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.4 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS24701DGK Frequently Asked Questions (FAQs)

  • The TPS24701DGK can handle input voltages up to 60V, but it's recommended to keep it below 40V for optimal performance and reliability.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consider consulting with a TI engineer or a qualified design expert. Additionally, use the TI Power Stage Designer tool to help with design and configuration.
  • For optimal thermal performance, follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal conductivity between the device and the PCB. Use thermal vias and a heat sink if necessary. Consult the TI application notes for more information.
  • Use the built-in diagnostic features, such as the fault pin and the I2C interface, to monitor the device's status. Consult the datasheet and application notes for troubleshooting guidelines, and consider using TI's Power Stage Designer tool to simulate and analyze the design.
  • Yes, the TPS24701DGK is designed for high-reliability applications, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required safety and reliability standards. Consult the datasheet and relevant industry standards for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS24701DGK Overview

Use the download button to access the TPS24701DGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
