Texas Instruments provides a recommended PCB layout in the TPS24710DGS evaluation module (EVM) user's guide, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and improve overall performance.
The input capacitor should be selected based on the input voltage ripple, output current, and operating frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF to 22uF, with a voltage rating of 1.5 to 2 times the input voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low to minimize voltage ripple.
The TPS24710DGS is rated for a maximum output current of 3A, but this can be limited by the thermal performance of the device and the PCB. In practice, the maximum output current may be lower, depending on the specific application and operating conditions.
The TPS24710DGS has a built-in voltage regulator that can be configured for a specific output voltage using external resistors. The output voltage is set by the ratio of the resistors R1 and R2, according to the formula: Vout = 0.8V x (1 + R2/R1). The recommended values for R1 and R2 can be found in the datasheet.
The EN (Enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and enters a low-power shutdown mode. The EN pin can be connected to a logic signal or a switch to control the device's operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS24710DGS Overview

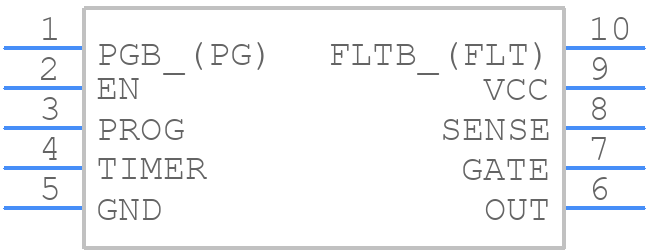

Use the download button to access the TPS24710DGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
