TPS24740RGER - Texas Instruments

Description: 2.5 to 18-V High Performance Hot Swap and ORing Controller

Download TPS24740RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

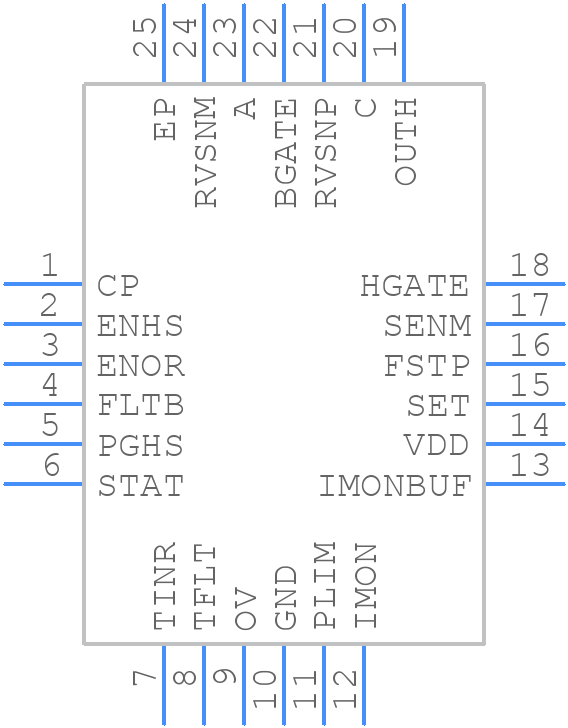

TPS24740RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS24740RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
TPS24740RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

TPS24740RGER Details

  • Manufacturer Part Number:

    TPS24740RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS24740RGER Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS24740RGER is 4A, but it can be limited by the thermal performance of the PCB and the ambient temperature.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor selection guide in the datasheet, and then fine-tune the value based on the specific design requirements.
  • The EN (enable) pin is used to turn the converter on and off. It can be connected to a logic signal or a push-button switch to control the power conversion. A high logic level on the EN pin enables the converter, while a low logic level disables it.
  • The internal FETs have a voltage drop that depends on the current and temperature. To compensate for this drop, you can adjust the output voltage setting or add an external voltage sense resistor to regulate the output voltage more accurately.
  • A good PCB layout for the TPS24740RGER involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. The datasheet provides a recommended PCB layout and thermal pad connection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS24740RGER Overview

Use the download button to access the TPS24740RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
