Texas Instruments provides a recommended PCB layout in the TPS24741RGER evaluation module (EVM) user's guide, which includes guidelines for component placement, thermal management, and routing. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and ripple requirements. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the ripple voltage is within the recommended range (typically 1-2% of the input voltage). The TPS24741RGER datasheet provides a recommended input capacitor value, but it's essential to verify the selection based on the specific application requirements.
The TPS24741RGER has a maximum ambient temperature rating of 85°C, but it's essential to consider the thermal derating curve provided in the datasheet. The device's power dissipation and thermal resistance (θJA) affect its operating temperature, and exceeding the recommended temperature range can impact its reliability and performance.
The TPS24741RGER is an industrial-grade device, but it's not specifically designed for high-reliability or automotive applications. Texas Instruments offers other devices, such as the TPS24741-Q1, which is AEC-Q100 qualified and suitable for automotive applications. It's essential to verify the device's specifications and certifications meet the requirements of the target application.
The TPS24741RGER has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a recommended OCP circuit configuration, and the device's OCP threshold can be adjusted by selecting the appropriate resistor value. It's essential to carefully design the OCP circuit to ensure it triggers at the desired current level and doesn't interfere with the device's normal operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS24741RGER Overview

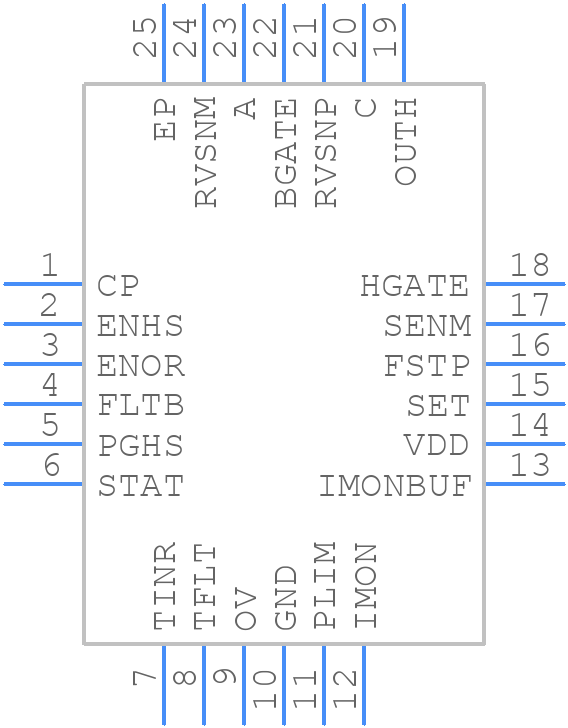

Use the download button to access the TPS24741RGER schematic symbol, PCB footprint, and 3D model.
