The maximum current rating of the TPS24770RGER is 70A, but it's recommended to derate the current based on the ambient temperature and PCB layout to ensure reliable operation.
The sense resistor value depends on the desired current limit and the voltage drop across the sense resistor. A good starting point is to use the formula Rsense = 0.05V / Imax, where Imax is the maximum current limit. Then, adjust the value based on the specific application requirements.
The EN (enable) pin is used to turn the device on and off. Connect EN to a logic high (e.g., 3.3V or 5V) to enable the device, and connect it to a logic low (e.g., GND) to disable it. You can also use the EN pin to implement a power-good signal or a fault indicator.
The TPS24770RGER has built-in OCP and SCP features. For OCP, set the sense resistor value to trigger the OCP threshold (typically 150mV). For SCP, the device will automatically limit the current to prevent damage. You can also use the FLAG pin to monitor fault conditions and take corrective action.
The TPS24770RGER has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. Ensure good thermal design practices, such as using a heat sink, thermal interface material, and adequate airflow. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS24770RGER Overview

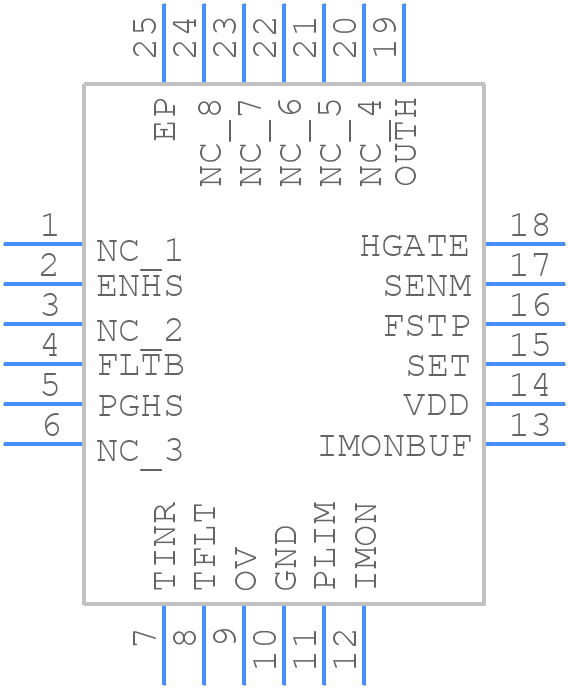

Use the download button to access the TPS24770RGER schematic symbol, PCB footprint, and 3D model.
