A good PCB layout for the TPS24771RGET involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
When selecting an inductor for the TPS24771RGET, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ.
The maximum ambient temperature for the TPS24771RGET is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure good airflow and heat sinking to maintain a safe operating temperature.
Yes, the TPS24771RGET is designed to withstand high-vibration environments. However, it's essential to ensure that the PCB is securely fastened to the system, and the components are properly soldered to prevent mechanical stress.
To troubleshoot issues with the TPS24771RGET, start by checking the input voltage, output voltage, and current. Use an oscilloscope to monitor the switching node and output voltage. Check for proper PCB layout, component selection, and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS24771RGET Overview

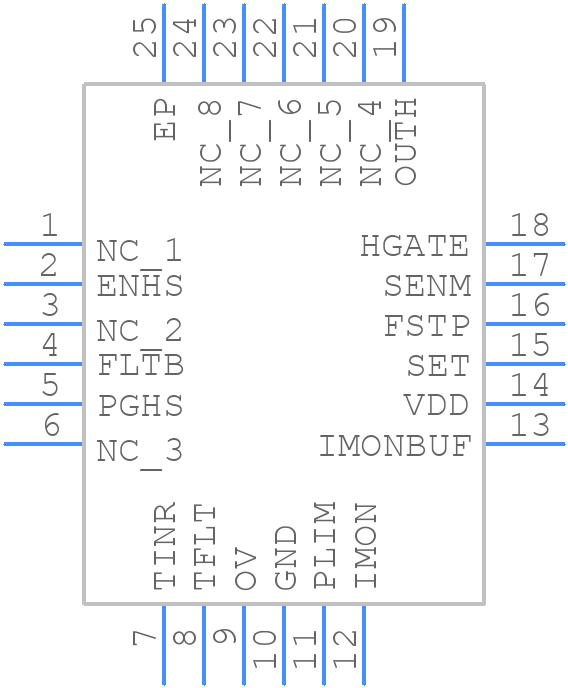

Use the download button to access the TPS24771RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
