The TPS2482PWR can handle up to 2A of continuous current, but it's recommended to derate the current based on the ambient temperature and PCB layout to ensure reliable operation.
The sense resistor value depends on the desired current limit and the voltage drop across the sense resistor. A good starting point is to use the formula Rsense = 0.05V / Ilim, where Ilim is the desired current limit. However, it's recommended to consult the application notes and perform simulations to ensure the optimal value for your specific use case.
The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing, reduce power consumption, or provide a shutdown function in your system.
The POR and UVLO features are designed to ensure that the device powers up correctly and remains in a valid state. To handle these features, ensure that the input voltage rises monotonically and that the output capacitor is properly sized to prevent voltage droop during startup. Additionally, consider adding a voltage supervisor or reset IC to provide a clean reset signal to your system.
The TPS2482PWR has a thermal shutdown feature that protects the device from overheating. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a sufficient heat sink, and follow the recommended layout guidelines. Additionally, consider derating the current based on the ambient temperature to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2482PWR Overview

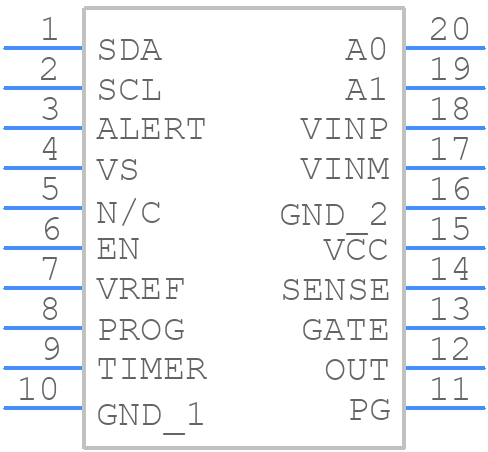

Use the download button to access the TPS2482PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
