Description:Texas Instruments TPS25200DRVT eFuse Intelligent Power Switch, USB Power Switch, 2.5A max programmable, over-voltage clamp 5.5V, 2.5 → 6.5V, 6-Pin, SON
A good PCB layout for the TPS25200DRVT involves placing the device close to the load, using short and wide traces for power and ground, and separating analog and digital signals. A 4-layer PCB with a solid ground plane is recommended. Additionally, decoupling capacitors should be placed close to the device's power pins.
The input capacitor should be chosen based on the input voltage ripple requirement, output voltage, and the device's input capacitance requirement. A low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. The capacitor should be placed close to the device's input pins.
The TPS25200DRVT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Yes, the TPS25200DRVT is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the device's reliability in the application.
To troubleshoot issues with the TPS25200DRVT, start by checking the device's input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are properly sized. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25200DRVT Overview

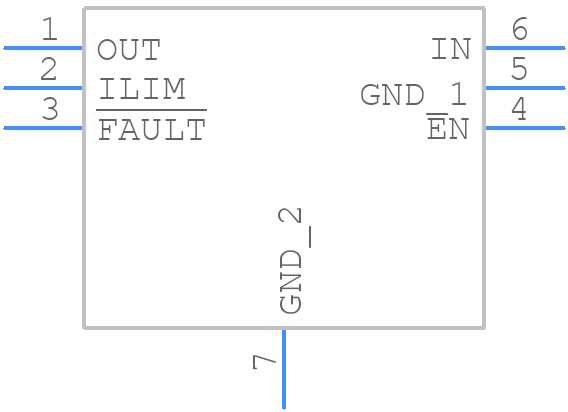

Use the download button to access the TPS25200DRVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
