Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also ensure that the input and output capacitors are properly selected and placed. Additionally, the datasheet provides a stability analysis section that can help with component selection and verification.
The TPS25210LRPWR has an absolute maximum input voltage rating of 18V, but the recommended operating input voltage range is 4.5V to 15V. Exceeding the absolute maximum rating can damage the device.
The TPS25210LRPWR has an operating junction temperature range of -40°C to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and ensure proper heat sinking and cooling to maintain reliable operation.
Texas Instruments provides a troubleshooting guide in the datasheet, which includes a step-by-step procedure to identify and resolve common issues. Additionally, engineers can use oscilloscopes and other measurement tools to analyze the device's behavior and identify the root cause of the problem.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25210LRPWR Overview

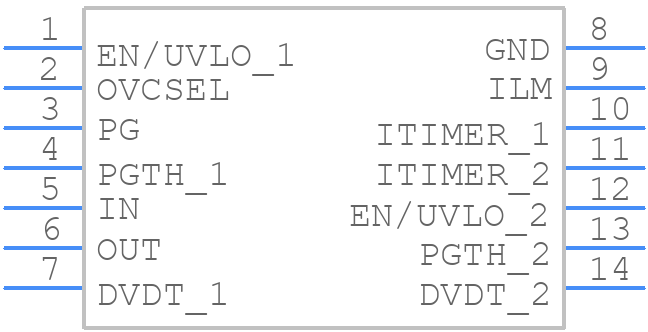

Use the download button to access the TPS25210LRPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
