Texas Instruments provides a recommended PCB layout in the TPS2540ARTET datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and thermal dissipation.
The input capacitor selection depends on the input voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the TPS2540ARTET.
The maximum output current of the TPS2540ARTET is 4A, but it's limited by the thermal dissipation of the device. The actual output current depends on the input voltage, output voltage, and ambient temperature. It's essential to perform thermal calculations and consider derating the output current to ensure reliable operation.
The TPS2540ARTET has a maximum operating junction temperature of 150°C. While it can operate in high-temperature environments, it's essential to consider the thermal management and derate the output current accordingly. Additionally, ensure that the device is properly heatsinked and the PCB is designed to handle the thermal stresses.
To troubleshoot issues with the TPS2540ARTET, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the input and output capacitors are correctly selected. Use an oscilloscope to check for voltage ripple, noise, and switching frequency. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2540ARTET Overview

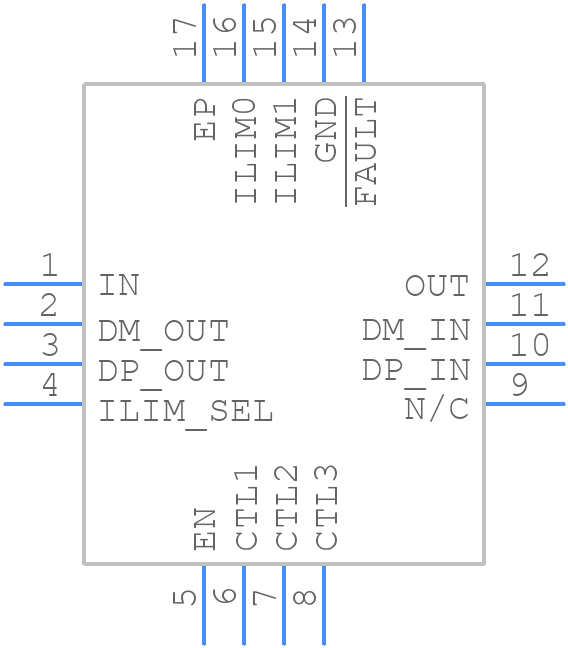

Use the download button to access the TPS2540ARTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
