Part Image

TPS2540RTER - Texas Instruments

Description: USB Charging Port Power Switch & Controller for Charging Host Ports & Dedicated Charging Ports

Download TPS2540RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

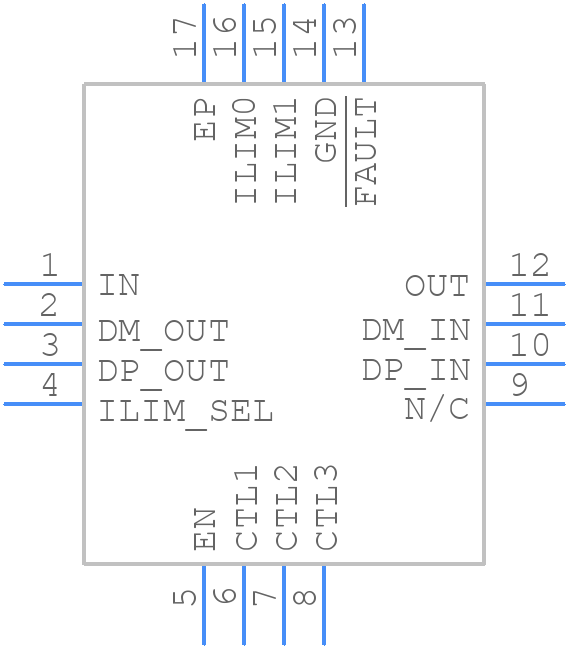

TPS2540RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2540RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE(S-PWQFN-N16
click to zoom
3D Models
TPS2540RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE(S-PWQFN-N16
click to zoom

TPS2540RTER Details

  • Manufacturer Part Number:

    TPS2540RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.185 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2540RTER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS2540RTER involves placing the input capacitor close to the VIN pin, and the output capacitor close to the VOUT pin. Additionally, the power traces should be wide and short to minimize resistance and inductance. A solid ground plane is also recommended to reduce noise and improve thermal performance.
  • The input capacitor should have a voltage rating of at least 2x the input voltage, and a capacitance value of 1-10uF. The output capacitor should have a voltage rating of at least 1.5x the output voltage, and a capacitance value of 1-22uF. The capacitor's ESR (Equivalent Series Resistance) should be low to minimize voltage ripple.
  • The TPS2540RTER has an operating ambient temperature range of -40°C to 85°C. However, the device's junction temperature should not exceed 125°C to ensure reliable operation.
  • The power dissipation of the TPS2540RTER can be calculated using the formula: Pd = (VIN - VOUT) x IOUT x Efficiency. The efficiency of the device can be obtained from the datasheet or by measuring the input and output currents and voltages.
  • The EN (Enable) pin is used to turn the device on or off. When the EN pin is high (above 1.4V), the device is enabled and operates normally. When the EN pin is low (below 0.4V), the device is disabled and consumes minimal power. The EN pin can be connected to a logic signal or a switch to control the device's operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2540RTER Overview

Use the download button to access the TPS2540RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
