Texas Instruments provides a recommended PCB layout in the TPS2541RTER datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low EMI, and high reliability.
The input capacitor selection depends on the input voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
The TPS2541RTER is a 4-channel eFuse with a maximum output current of 1.5A per channel. However, the actual output current may be limited by the thermal performance of the device, PCB layout, and input voltage. It is essential to check the device's thermal derating curves and perform thermal analysis to ensure reliable operation.
The TPS2541RTER's fault thresholds and timing parameters can be programmed using the I2C interface. Texas Instruments provides a programming guide and software tools, such as the TPS2541RTER Evaluation Module, to simplify the programming process.
The EN (Enable) pin is used to enable or disable the TPS2541RTER's output channels. When the EN pin is pulled low, the output channels are disabled, and when it is pulled high, the output channels are enabled. This pin can be used to implement power sequencing, fault detection, or other system-level control functions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2541RTER Overview

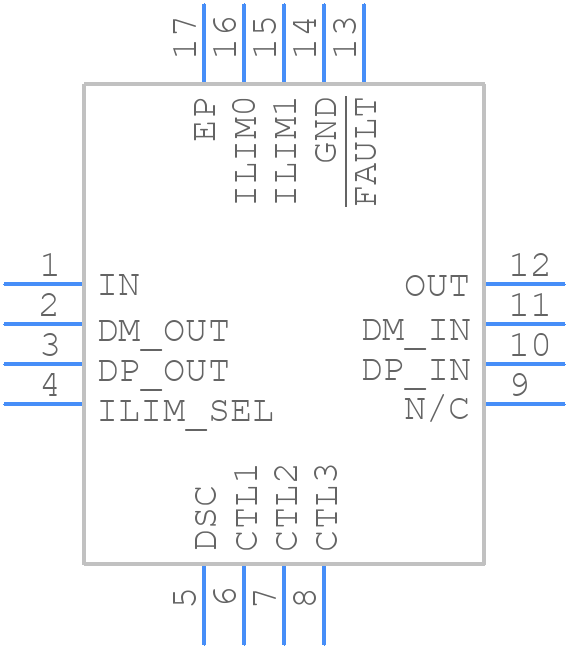

Use the download button to access the TPS2541RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
