Texas Instruments provides a recommended PCB layout in the TPS2544RTET evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output current, and desired ripple voltage. A general guideline is to choose a capacitor with a capacitance value of at least 10uF, a voltage rating of 1.5 to 2 times the input voltage, and a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stability.
The TPS2544RTET is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to consider the thermal management and heat sinking requirements to ensure reliable operation within the specified temperature range.
Yes, the TPS2544RTET is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
Troubleshooting issues with the TPS2544RTET typically involves checking the input voltage, output current, and component temperatures. It's also essential to review the PCB layout, component selection, and design parameters to ensure they meet the recommended guidelines. Texas Instruments provides a troubleshooting guide and application notes to help identify and resolve common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2544RTET Overview

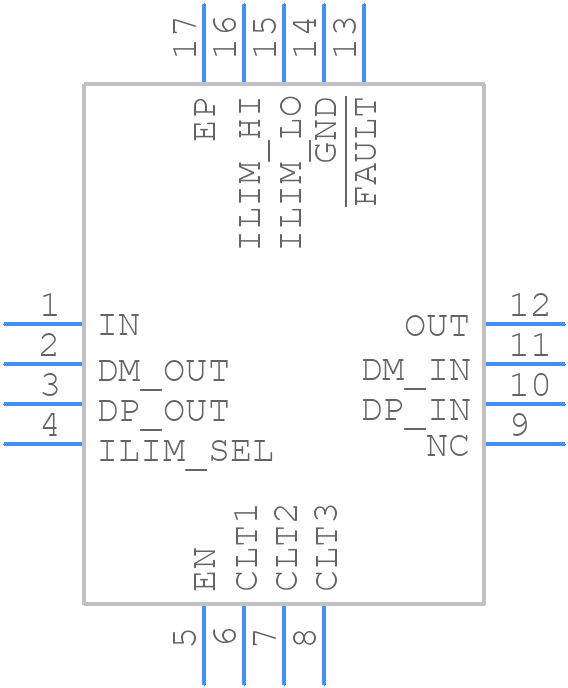

Use the download button to access the TPS2544RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
