Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance. A good rule of thumb is to have a solid copper pour on the top and bottom layers, and to use thermal vias to connect the pour to the internal layers.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (TJ) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation. It's also important to follow the recommended PCB layout guidelines to minimize parasitic inductance and resistance.
To troubleshoot issues with the TPS254900AIRVCTQ1, start by reviewing the datasheet and application notes to ensure that the device is being used within the recommended operating conditions. Check the input voltage, output voltage, and current to ensure they are within the specified ranges. Use an oscilloscope to monitor the device's behavior and look for signs of oscillation, noise, or other anomalies. If the issue persists, consider consulting with a Texas Instruments support engineer or seeking assistance from a qualified design expert.
Using a different input voltage range than the recommended 4.5V to 18V may affect the device's performance, efficiency, and reliability. Operating outside the recommended range may result in reduced output voltage accuracy, increased power consumption, or even device failure. It's essential to consult the datasheet and application notes to understand the implications of using a different input voltage range and to ensure that the device is used within its recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS254900AIRVCTQ1 Overview

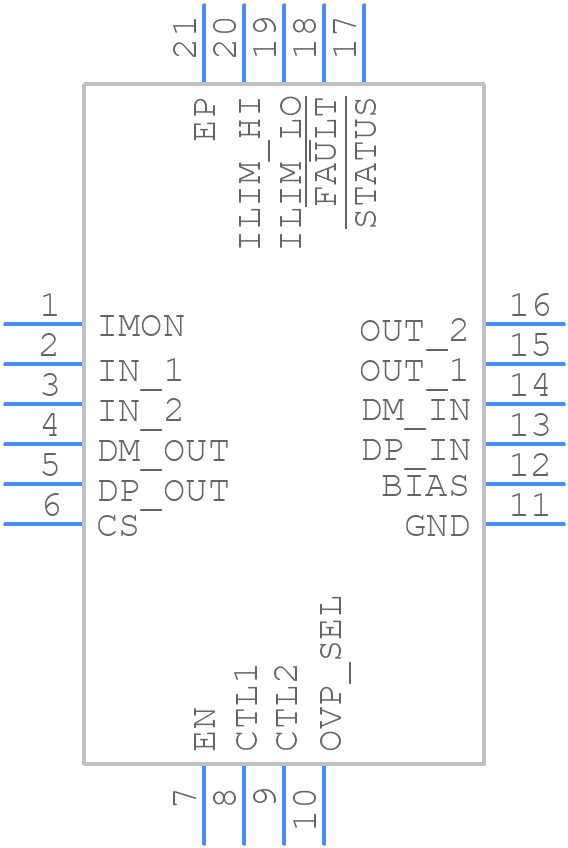

Use the download button to access the TPS254900AIRVCTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
