Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general thermal design guidelines, such as placing thermal vias under the device, using a solid ground plane, and keeping the device away from heat sources.
In addition to following the recommended operating temperature range, ensure that the device is properly heatsinked, and consider using thermal interface materials to improve heat transfer. Also, be mindful of the device's power dissipation and thermal resistance.
Using a lower input voltage may affect the device's performance, such as reduced output current capability and increased dropout voltage. Consult the datasheet's electrical characteristics tables to determine the impact of a lower input voltage on your specific application.
The TPS254900IRVCTQ1 is designed for high-current applications, but it's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle the high currents. Also, consider the device's power dissipation and thermal resistance to avoid overheating.
To troubleshoot overcurrent protection issues, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is properly connected and that the device is not overheating. Consult the datasheet's application information and troubleshooting sections for more guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS254900IRVCTQ1 Overview

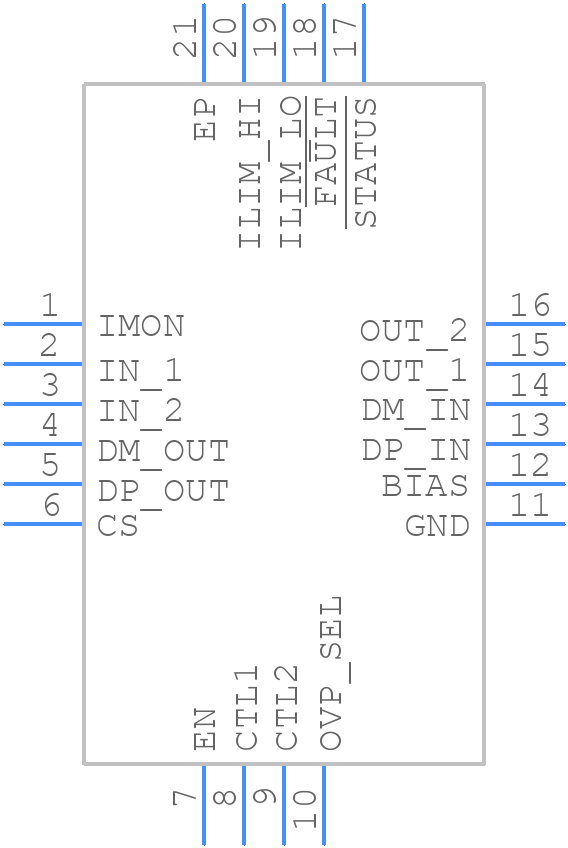

Use the download button to access the TPS254900IRVCTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
