The maximum current rating of the TPS2556QDRBRQ1 is 2.5A per channel, with a total current limit of 5A for both channels combined.
To ensure safe operation in high-temperature environments, ensure that the device is properly heatsinked, and the junction temperature (TJ) does not exceed 150°C. Also, follow the recommended PCB layout and thermal design guidelines.
The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. Connect EN to a logic high (e.g., VCC) to enable the device, or connect it to a logic low (e.g., GND) to disable it.
The TPS2556QDRBRQ1 has built-in fault detection and protection features, including overcurrent protection, short-circuit protection, and thermal shutdown. Configure the device by setting the appropriate threshold values for overcurrent detection and thermal shutdown using external resistors and capacitors.
Follow the recommended PCB layout guidelines in the datasheet, including keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Also, ensure that the thermal pad is properly connected to a heat sink or a thermal relief pattern.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2556QDRBRQ1 Overview

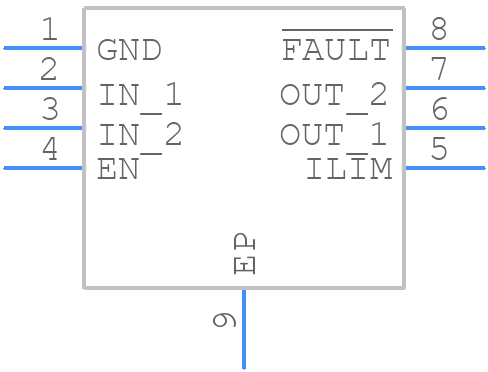

Use the download button to access the TPS2556QDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
