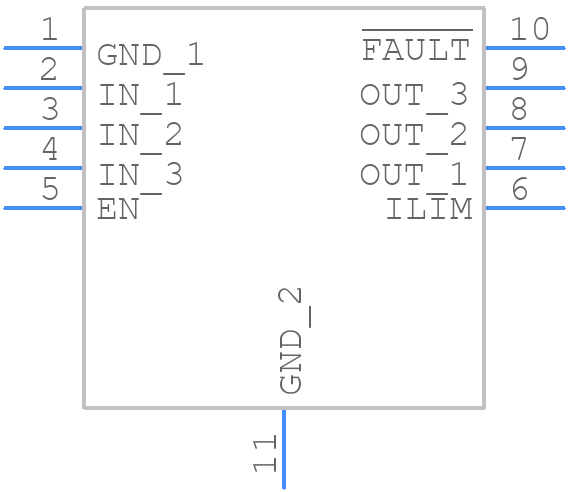

TPS2559QWDRCTQ1 - Texas Instruments

TPS2559QWDRCTQ1 Details

• Manufacturer Part Number:

  TPS2559QWDRCTQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  LOAD SWITCH

• Input Voltage-Max:

  6.5 V

• Input Voltage-Min:

  2.5 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  2

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Supply Current-Max (Isup):

  0.135 mA

• Supply Voltage-Max (Vsup):

  6.5 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Threshold Voltage-Nom:

  +2.36V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
