Part Image

TPS2560DRCT - Texas Instruments

Description: Power Switch ICs - Power Distribution Dual Ch Prec Adj Current-Ltd Pwr Sw

Download TPS2560DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

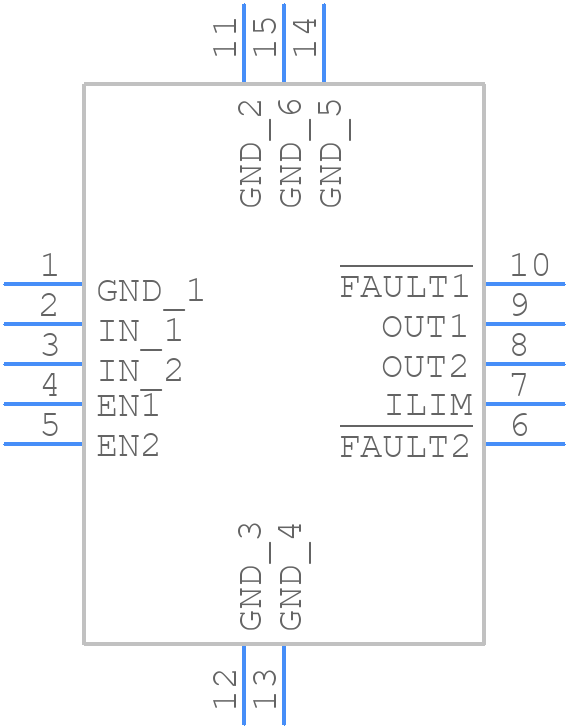

TPS2560DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2560DRCT - Texas Instruments PCB footprint - Other - Other - TPS2560DRCT-4
click to zoom
3D Models
TPS2560DRCT - Texas Instruments - 3D model - Other - TPS2560DRCT-4
click to zoom

TPS2560DRCT Details

  • Manufacturer Part Number:

    TPS2560DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.125 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2560DRCT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS2560DRCT involves placing the device close to the load, using short and wide traces for power and ground, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the device is operated within the recommended input voltage range. Additionally, a minimum of 10uF ceramic capacitor is recommended at the input.
  • The TPS2560DRCT can handle a maximum input voltage of 6.5V, but it is recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The TPS2560DRCT is rated for operation up to 85°C, but it can be used in high-temperature applications up to 125°C with some derating. However, the device's performance and reliability may be affected at higher temperatures.
  • The output voltage of the TPS2560DRCT can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the internal reference voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2560DRCT Overview

Use the download button to access the TPS2560DRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
