TPS2561QDRCRQ1 - Texas Instruments

Description: Automotive 2.7 to 5.5V, Dual Channel Precision Adjustable Current-Limit Power Distribution Switch

Download TPS2561QDRCRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

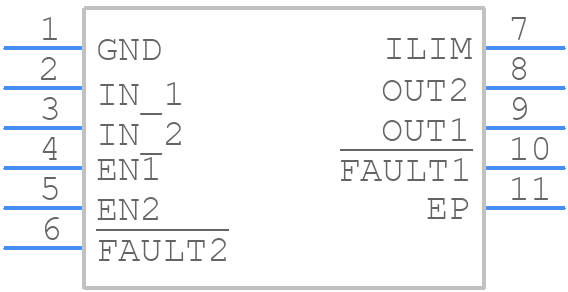

TPS2561QDRCRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2561QDRCRQ1 - Texas Instruments PCB footprint - Other - Other - DRC0010J-4
click to zoom
3D Models
TPS2561QDRCRQ1 - Texas Instruments - 3D model - Other - DRC0010J-4
click to zoom

TPS2561QDRCRQ1 Details

  • Manufacturer Part Number:

    TPS2561QDRCRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Current Limit:2.8A;Thermal Shutdown:155C;Adjustable Current Limit

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.125 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.35V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2561QDRCRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS2561QDRCRQ1 should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 0.1 μF) between VIN and GND. Additionally, the input and output capacitors should be placed close to the device.
  • The input capacitor (CIN) should be a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 1 μF and 10 μF. The output capacitor (COUT) should be a low-ESR ceramic capacitor with a value between 1 μF and 22 μF. The capacitor values depend on the specific application requirements and output current.
  • The TPS2561QDRCRQ1 can handle input voltages up to 6.5 V, but it is recommended to operate within the specified input voltage range of 2.7 V to 5.5 V for optimal performance and reliability.
  • To ensure stability, the TPS2561QDRCRQ1 requires a minimum output capacitance of 1 μF and a maximum equivalent series resistance (ESR) of 1 Ω. Additionally, the device should be operated within the specified input voltage range, and the input and output capacitors should be placed close to the device.
  • The TPS2561QDRCRQ1 has a thermal derating of 12.5 mW/°C above 25°C. This means that the device's power dissipation should be reduced by 12.5 mW for every degree Celsius above 25°C to prevent overheating.
