Texas Instruments provides a recommended PCB layout in the TPS25730DREFR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and ensure reliable operation.
The input capacitor should be selected based on the input voltage ripple, output current, and operating frequency. A general guideline is to choose a capacitor with a capacitance value of at least 10uF, a voltage rating of 1.5 to 2 times the input voltage, and a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
The TPS25730DREFR is rated for a maximum output current of 3A, but this can be limited by the thermal performance of the PCB, the input voltage, and the output voltage. It's essential to check the device's thermal performance and adjust the output current accordingly to prevent overheating and ensure reliable operation.
The TPS25730DREFR has a fixed output voltage option, but it can also be configured for an adjustable output voltage using an external resistor divider network. The output voltage can be set using the VOUT pin and the FB pin, following the equations and guidelines provided in the datasheet.
The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25730DREFR Overview

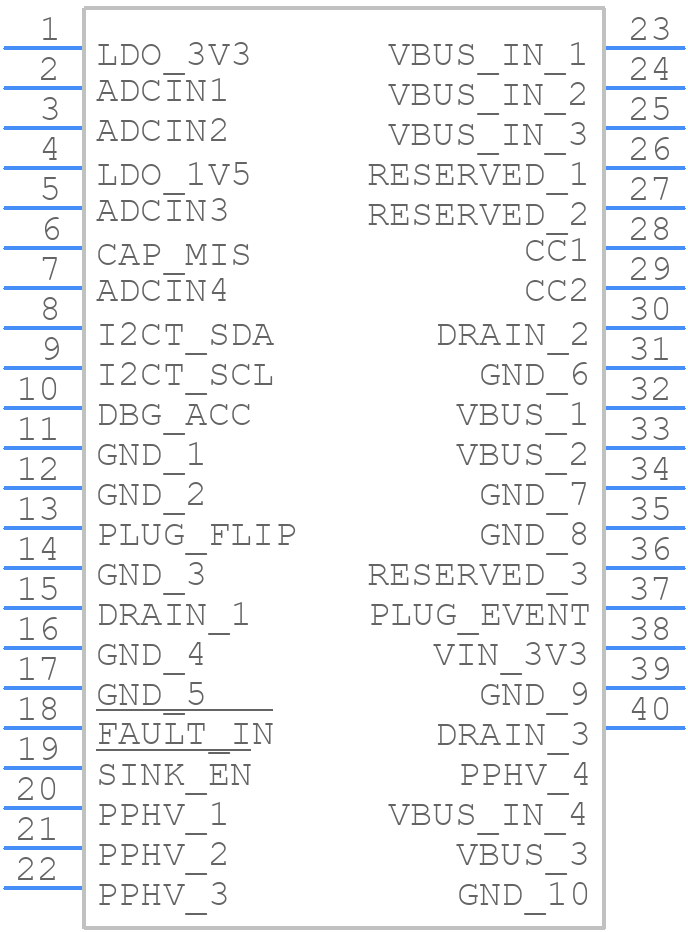

Use the download button to access the TPS25730DREFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
