Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors meet the recommended specifications. Additionally, ensure that the device is properly decoupled from the input voltage source, and that the output voltage is properly filtered.
While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to derate the input voltage to 5V or less to ensure reliable operation and to prevent damage to the device.
The TPS25730SRSMR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. Additionally, ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
Start by verifying that the input voltage and output load are within the recommended specifications. Check for proper PCB layout and component values, and ensure that the device is properly decoupled from the input voltage source. Use an oscilloscope to check for oscillations or other anomalies on the input and output pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25730SRSMR Overview

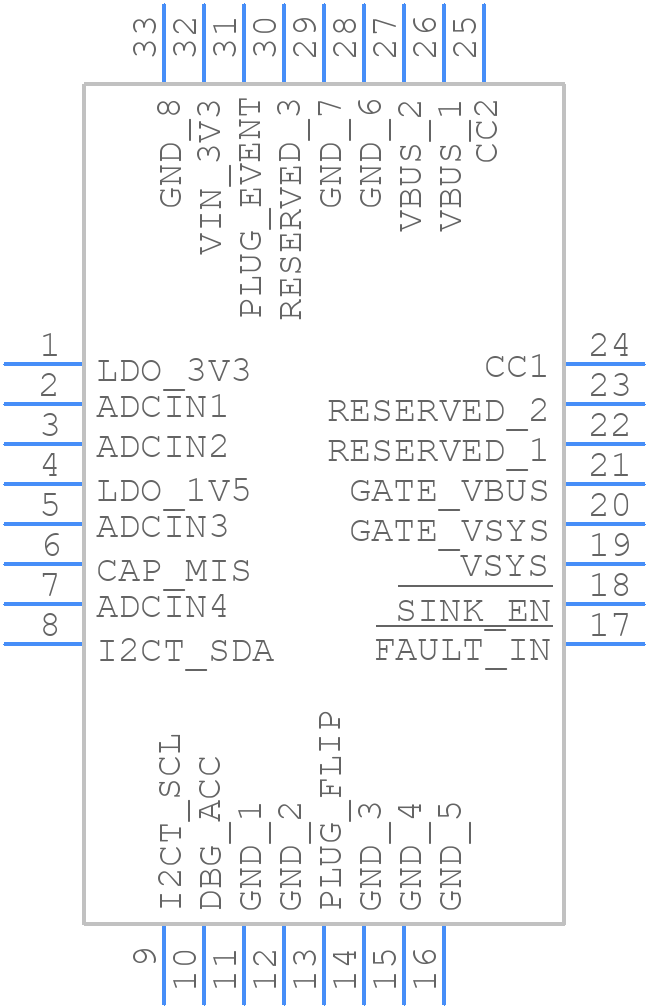

Use the download button to access the TPS25730SRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
