TPS25741ARSMT - Texas Instruments

Description: USB Type-C™ and USB PD Source Controllers

Download TPS25741ARSMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

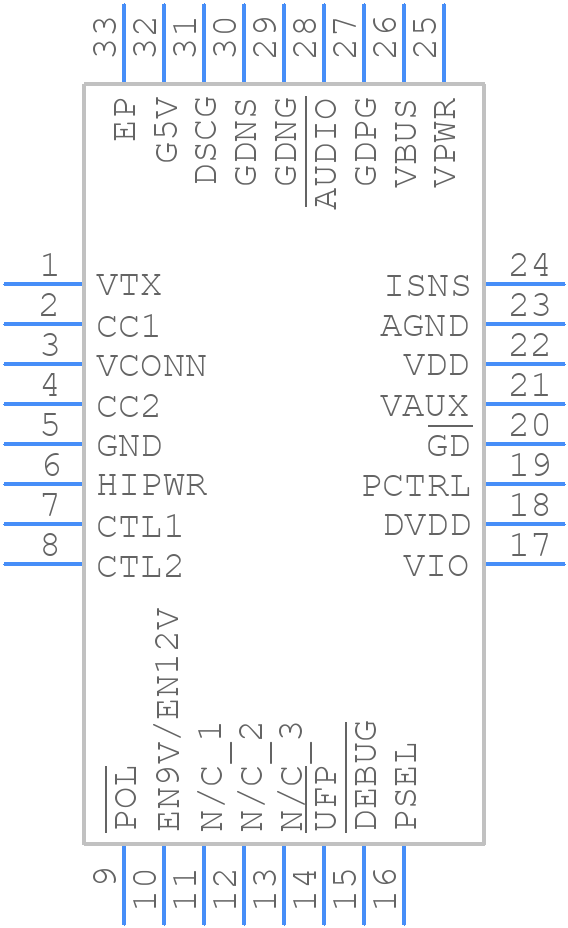

TPS25741ARSMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25741ARSMT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM0032B
click to zoom
3D Models
TPS25741ARSMT - Texas Instruments - 3D model - Quad Flat No-Lead - RSM0032B
click to zoom

TPS25741ARSMT Details

  • Manufacturer Part Number:

    TPS25741ARSMT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-01-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4.65 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    2.86

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS25741ARSMT Frequently Asked Questions (FAQs)

  • It is recommended to follow the layout guidelines provided in the datasheet, including placing the input capacitor close to the VIN pin, and using a dedicated ground plane for the device. A 4-layer PCB is recommended to minimize noise and ensure proper operation.
  • The TPS25741ARSMT has a range of possible output voltages from 2.5V to 15V. To select the correct output voltage, consider the voltage requirements of your load, the input voltage range, and the power dissipation of the device. You can use the datasheet's voltage selector table to determine the correct output voltage setting resistors.
  • The minimum input voltage for the TPS25741ARSMT is 2.7V. However, the device can operate down to 2.5V with reduced performance and lower output current capability.
  • The TPS25741ARSMT has a built-in overcurrent protection feature that limits the output current to a maximum of 1.5A. If the output current exceeds this limit, the device will enter a hiccup mode, where it will cycle on and off until the fault is cleared.
  • The TPS25741ARSMT is specified to operate up to a junction temperature of 150°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to consider the thermal design and heat sinking requirements for your application to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25741ARSMT Overview

Use the download button to access the TPS25741ARSMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
