TPS25750DRJKR - Texas Instruments

Description: USB, Type-C Controller PMIC 38-WQFN (4x6)

Download TPS25750DRJKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

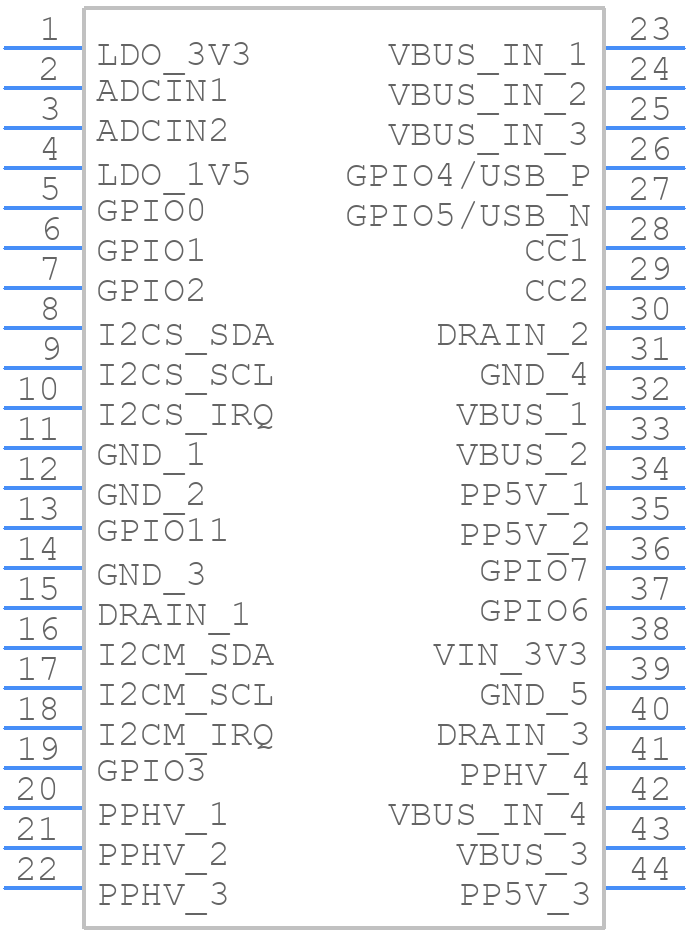

Symbol
TPS25750DRJKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25750DRJKR - Texas Instruments PCB footprint - Other - Other - TPS25750DRJKR-2
click to zoom
3D Models
TPS25750DRJKR - Texas Instruments - 3D model - Other - TPS25750DRJKR-2
click to zoom

TPS25750DRJKR Details

  • Manufacturer Part Number:

    TPS25750DRJKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-11-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD Controller

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.16X.24,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +5.9V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS25750DRJKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS25750DRJKR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • Choose an input capacitor with a voltage rating that exceeds the maximum input voltage, a capacitance value between 4.7uF to 10uF, and an ESR that meets the datasheet specifications. X5R or X7R ceramic capacitors are good options.
  • The TPS25750DRJKR can deliver up to 3A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Always check the datasheet for the specific current rating and thermal derating.
  • The TPS25750DRJKR uses a resistive divider network to set the output voltage. Choose the correct resistor values using the formula provided in the datasheet, and ensure that the resistors are 1% tolerance or better.
  • The EN (enable) pin is used to turn the regulator on or off. Tie the EN pin to VIN through a resistor to enable the regulator, or tie it to GND to disable it. You can also use the EN pin to implement power sequencing or to control the regulator using a microcontroller.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25750DRJKR Overview

Use the download button to access the TPS25750DRJKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
