Description:USB Interface IC USB Type-C and USB Power Delivery (PD) controller with integrated power switches , 3V ~ 3.6V, 4.9V ~ 5.5V, 4V ~ 22V , -40°C ~ 125°C (TJ) , 3mA , 38-WQFN (4x6)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the datasheet provides a stability analysis section that can help with component selection and design verification.
The TPS25751DREFR has an absolute maximum input voltage rating of 24V, but the recommended operating input voltage range is 4.5V to 18V. Exceeding the absolute maximum rating can damage the device.
The TPS25751DREFR has a junction temperature rating of 150°C, but the recommended operating temperature range is -40°C to 125°C. Operating the device at high temperatures can affect its performance and reliability. It's recommended to follow the thermal design guidelines in the datasheet to ensure proper heat dissipation.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues and their possible causes. Additionally, engineers can use tools such as oscilloscopes and thermal cameras to debug and analyze the device's behavior.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25751DREFR Overview

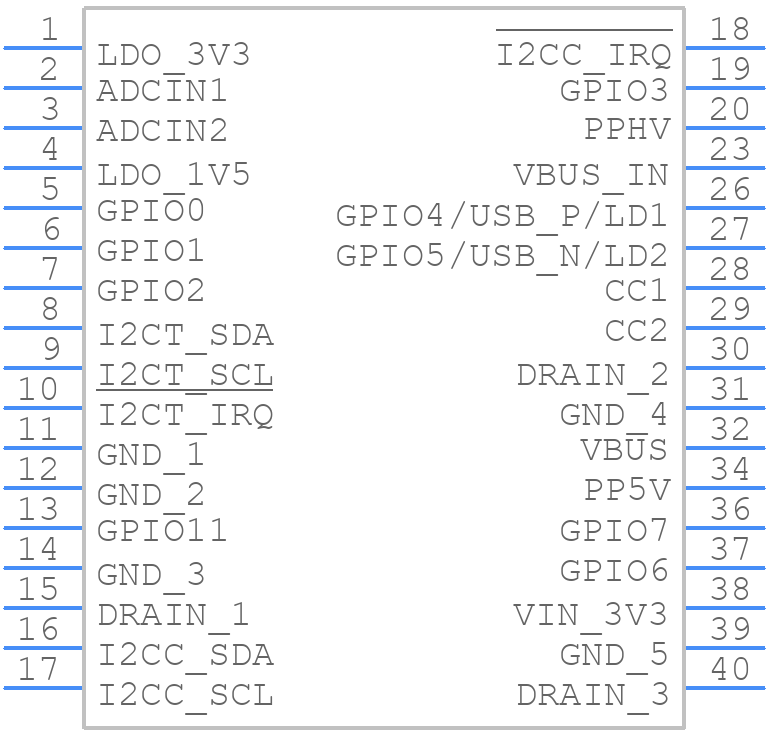

Use the download button to access the TPS25751DREFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
