Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors meet the recommended specifications. Additionally, ensure that the device is properly decoupled from the input voltage source, and that the output voltage is properly filtered.
The TPS25751SRSMR has an absolute maximum input voltage rating of 24V, but the recommended operating input voltage range is 4.5V to 18V. Exceeding the absolute maximum rating can damage the device.
The TPS25751SRSMR has an operating junction temperature range of -40°C to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to ensure proper heat sinking and cooling.
To troubleshoot issues, start by verifying the input voltage, output voltage, and component values. Check for proper PCB layout, decoupling, and filtering. Use an oscilloscope to measure the output voltage ripple and noise, and to check for oscillations or instability. Consult the datasheet and application notes for troubleshooting guidelines and tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25751SRSMR Overview

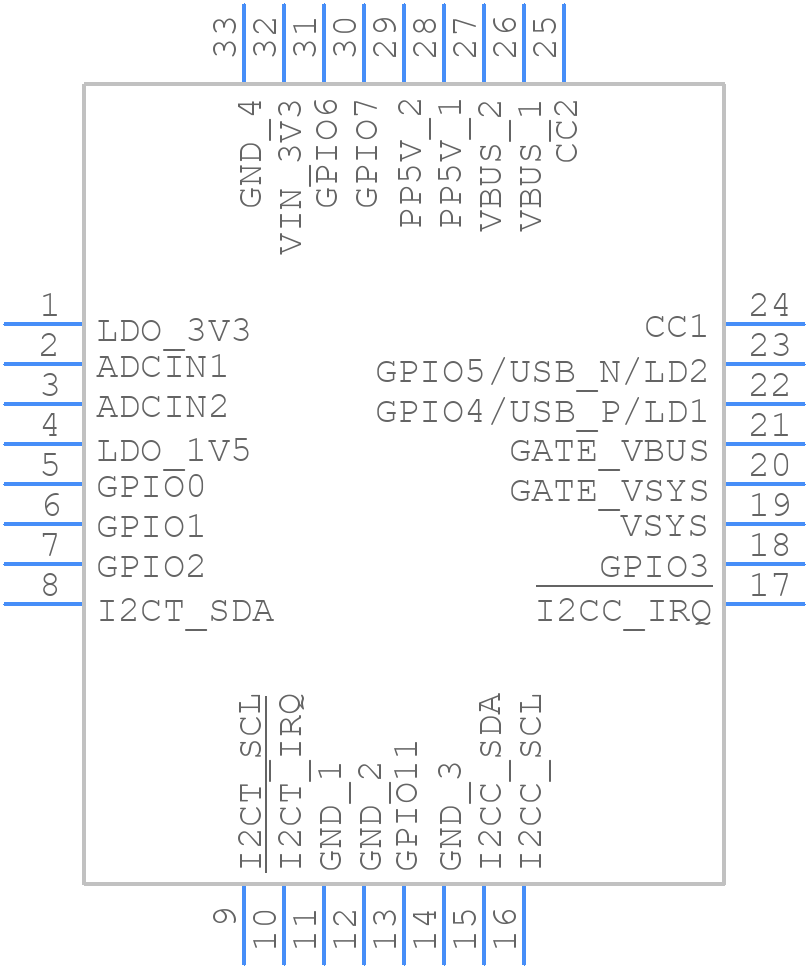

Use the download button to access the TPS25751SRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
