TPS25762CAQRQLRQ1 - Texas Instruments

Description: USB Interface IC Automotive USB Type-C® PD controller with integrated buck-boost regulator 29-VQFN-HR -40 to 125

Download TPS25762CAQRQLRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

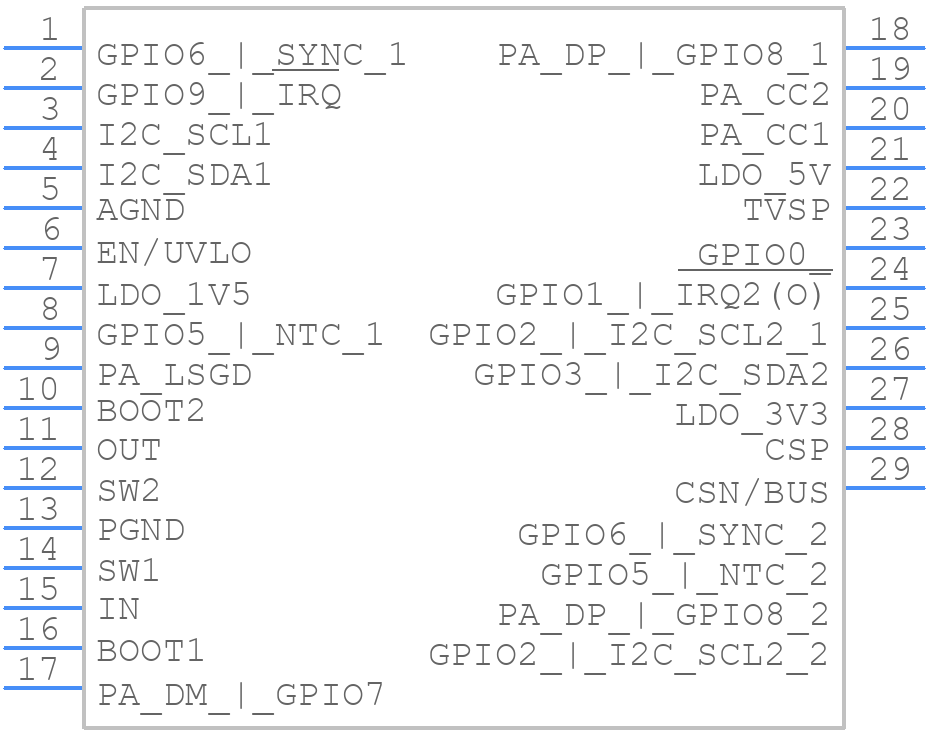

TPS25762CAQRQLRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25762CAQRQLRQ1 - Texas Instruments PCB footprint - Other - Other - RQL0029A
click to zoom
3D Models
TPS25762CAQRQLRQ1 - Texas Instruments - 3D model - Other - RQL0029A
click to zoom

TPS25762CAQRQLRQ1 Details

  • Manufacturer Part Number:

    TPS25762CAQRQLRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PQCC-N29

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC29,.20X.24,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS25762CAQRQLRQ1 Frequently Asked Questions (FAQs)

  • According to TI's application notes, a 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The exact value depends on the specific application and PCB layout.
  • To ensure the device is in a low-power state, make sure the EN pin is pulled low and the input voltage is removed. Additionally, ensure that the output capacitor is discharged to prevent any residual voltage from keeping the device active.
  • The maximum output current capability of the TPS25762CAQRQLRQ1 is 2A. However, the actual output current capability may be limited by the thermal performance of the device and the PCB design.
  • To handle thermal considerations, ensure that the device is mounted on a PCB with a good thermal conductivity. Use thermal vias and a thermal pad to dissipate heat. Additionally, ensure that the device is operated within its recommended temperature range and that the output current is limited to prevent overheating.
  • The recommended PCB layout for the TPS25762CAQRQLRQ1 involves placing the input capacitor close to the device, using a solid ground plane, and minimizing the distance between the device and the output capacitor. TI provides a reference layout in the datasheet and application notes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
