TPS25810RVCR - Texas Instruments

Description: USB Type-C Rev 1.2 DFP Controller and Power Switch With Load Detection

Download TPS25810RVCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

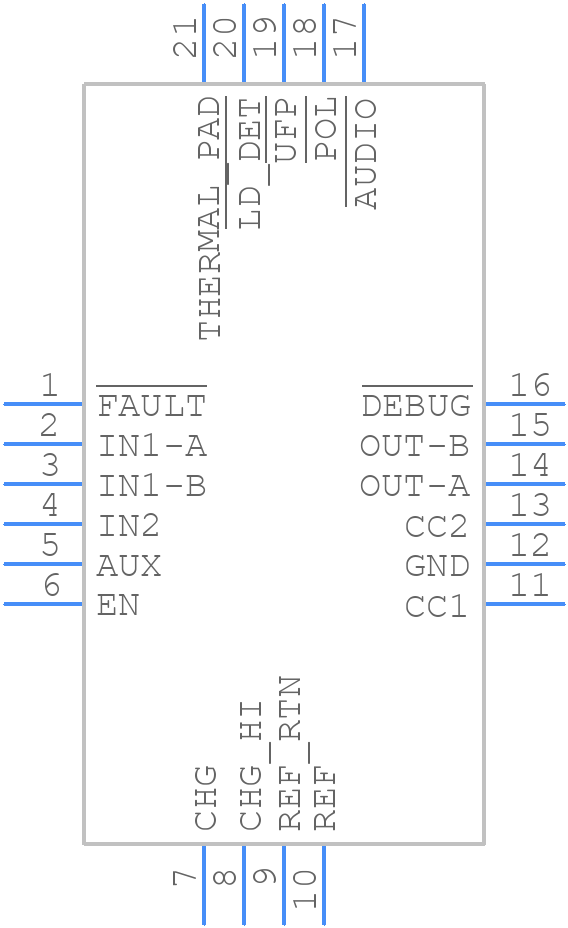

Symbol
TPS25810RVCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25810RVCR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - R-PWQFN-N20
click to zoom
3D Models
TPS25810RVCR - Texas Instruments - 3D model - Quad Flat No-Lead - R-PWQFN-N20
click to zoom

TPS25810RVCR Details

  • Manufacturer Part Number:

    TPS25810RVCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CURRENT LIMIT:7A; THERMAL SHUTDOWN:155C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS25810RVCR Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS25810RVCR is 3A per channel, with a total current limit of 6A for both channels combined.
  • To configure the TPS25810RVCR for USB-C PD applications, you need to connect the CC1 and CC2 pins to the CC lines of the USB-C connector, and use the I2C interface to configure the device for PD mode. Refer to the application note SLVAUH7 for more details.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and all outputs are turned off.
  • The TPS25810RVCR has a built-in current sense amplifier and a voltage sense pin (VS) that can be used to monitor the current and voltage of the device. The current sense amplifier provides a voltage output that is proportional to the current flowing through the device, and the VS pin provides a voltage output that is proportional to the input voltage.
  • The thermal shutdown temperature of the TPS25810RVCR is 150°C. If the device temperature exceeds this limit, it will shut down to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25810RVCR Overview

Use the download button to access the TPS25810RVCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
