Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-current PCB design guidelines, such as using thick copper traces, minimizing trace lengths, and using multiple vias to connect to the power plane.
Proper cooling is crucial for the TPS25810TWRVCRQ1. Ensure good airflow around the device, use a heat sink if possible, and follow the thermal design guidelines in the datasheet. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The maximum current rating for the TPS25810TWRVCRQ1 is 10A, but this can be affected by various factors such as ambient temperature, PCB layout, and cooling. Always check the datasheet and application notes for specific guidance on current rating and thermal design.
The TPS25810TWRVCRQ1 is a adjustable voltage regulator. To configure it for a specific output voltage, use the resistive divider network (R1 and R2) to set the output voltage. The datasheet provides a formula to calculate the resistor values for a specific output voltage.
The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25810TWRVCRQ1 Overview

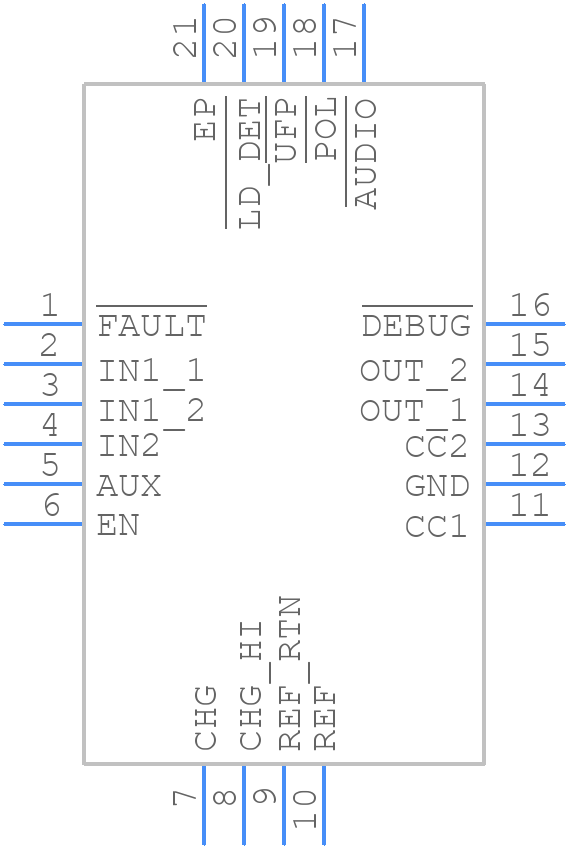

Use the download button to access the TPS25810TWRVCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
