A good PCB layout for the TPS25833QWRHBRQ1 should include a solid ground plane, a separate power plane for the input voltage, and a thermal relief pattern on the exposed pad to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet and application notes.
The input capacitor should be selected based on the input voltage ripple requirement, output current, and operating frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. TI recommends using a low-ESR capacitor such as an X5R or X7R type.
The TPS25833QWRHBRQ1 can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. The device's power dissipation and thermal performance should be considered when designing the system.
The TPS25833QWRHBRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values should be chosen based on the desired overcurrent threshold and the output voltage. TI provides a detailed example in the datasheet.
The EN pin is an active-high enable input that allows the device to be turned on and off. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25833QWRHBRQ1 Overview

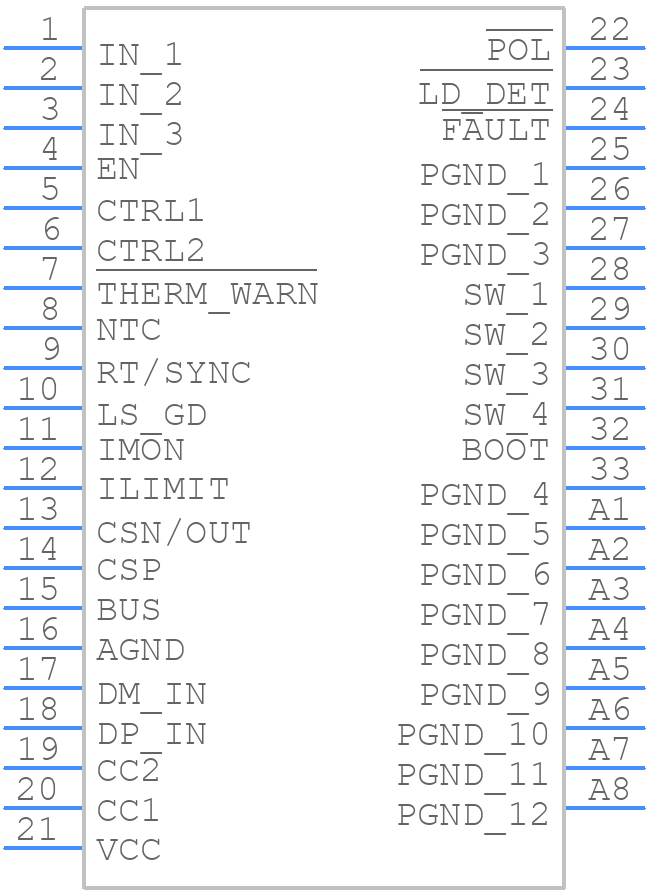

Use the download button to access the TPS25833QWRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Switching Regulator or Controllers
