TPS25854QRPQRQ1 - Texas Instruments

Description: USB Interface IC Single 3-A USB Type-C charging ports controller with load shedding

Download TPS25854QRPQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

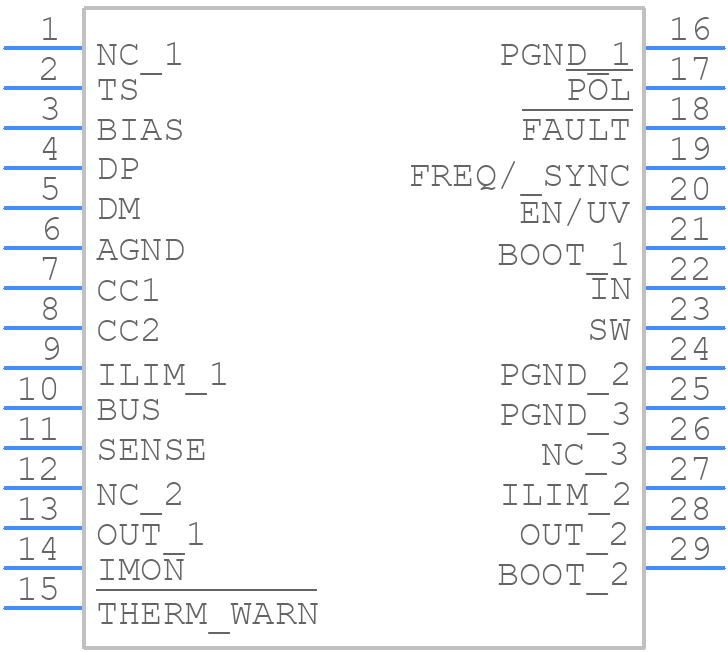

Symbol
TPS25854QRPQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25854QRPQRQ1 - Texas Instruments PCB footprint - Other - Other - TPS25854QRPQRQ1-2
click to zoom
3D Models
TPS25854QRPQRQ1 - Texas Instruments - 3D model - Other - TPS25854QRPQRQ1-2
click to zoom

TPS25854QRPQRQ1 Details

  • Manufacturer Part Number:

    TPS25854QRPQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PQCC-N25

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC25,.14X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TPS25854QRPQRQ1 Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the device, and a heat sink if possible. The datasheet provides some guidelines, but a more detailed application note (SLVA883) is available from TI.
  • TI provides a configuration tool (TPS25854 Configurator) that helps you generate the correct settings for your specific use case. You can also consult the datasheet and application notes for guidance.
  • Operating the device outside the recommended input voltage range (4.5V to 18V) may affect its performance, efficiency, and reliability. Consult the datasheet and application notes for specific guidance on input voltage tolerance.
  • TI provides a troubleshooting guide (SLVA884) that covers common issues and their solutions. You can also consult the datasheet, application notes, and online forums for additional guidance.
  • Yes, the device is designed to meet CISPR 22 and CISPR 24 standards. Follow proper PCB layout and design guidelines to minimize EMI/EMC issues. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25854QRPQRQ1 Overview

Use the download button to access the TPS25854QRPQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
