Part Image

TPS25858QRPQRQ1 - Texas Instruments

Description: USB Interface IC Dual 3-A USB Type-C charging ports controller with programmable current limit and load shedding 25-VQFN-HR -40 to 125

Download TPS25858QRPQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

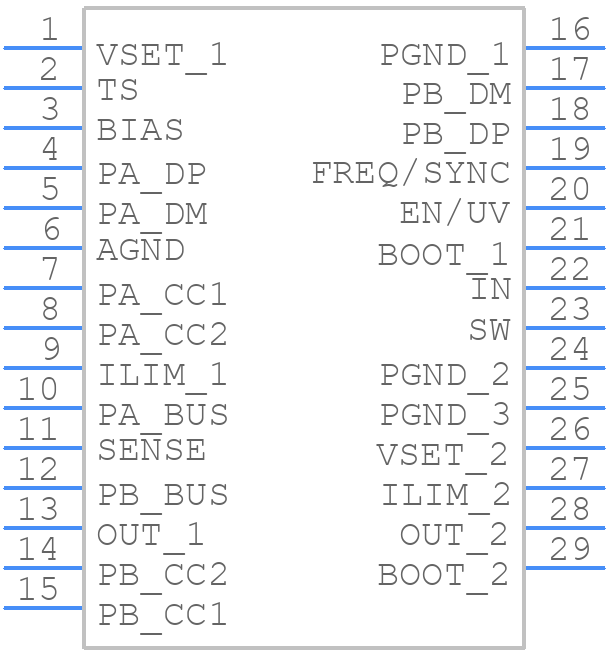

TPS25858QRPQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25858QRPQRQ1 - Texas Instruments PCB footprint - Other - Other - RPQ0025A_2021
click to zoom
3D Models
TPS25858QRPQRQ1 - Texas Instruments - 3D model - Other - RPQ0025A_2021
click to zoom

TPS25858QRPQRQ1 Details

  • Manufacturer Part Number:

    TPS25858QRPQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-12-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PQCC-N25

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC25,.14X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4.1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TPS25858QRPQRQ1 Frequently Asked Questions (FAQs)

  • The TPS25858QRPQRQ1 can handle input voltages up to 24V, but it's recommended to operate within the 5.5V to 20V range for optimal performance.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consider consulting with a Texas Instruments field application engineer or a qualified design expert.
  • The typical power dissipation of the TPS25858QRPQRQ1 is around 1.5W. To minimize power dissipation, ensure proper thermal design, use a heat sink if necessary, and optimize the input voltage and output current for your specific application.
  • The TPS25858QRPQRQ1 is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating.
  • To troubleshoot issues, review the datasheet and application notes, check the input voltage, output current, and thermal design, and consider using a logic analyzer or oscilloscope to debug the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25858QRPQRQ1 Overview

Use the download button to access the TPS25858QRPQRQ1 schematic symbol, PCB footprint, and 3D model.
