TPS259230DRCR - Texas Instruments

Description: 5V, 5A, 28mΩ eFuse with BFET Driver for Reverse Current Protection

Download TPS259230DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

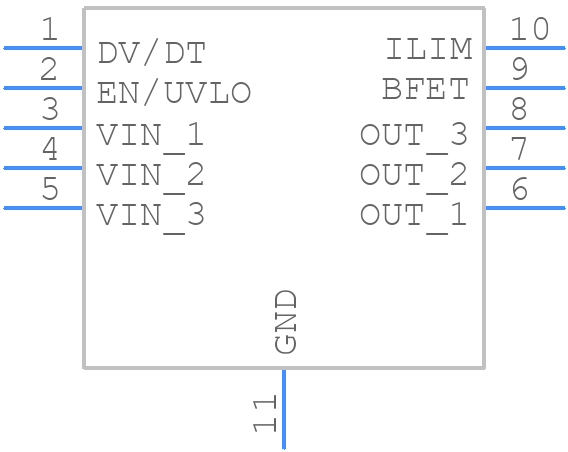

TPS259230DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259230DRCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC
click to zoom
3D Models
TPS259230DRCR - Texas Instruments - 3D model - Small Outline No-lead - DRC
click to zoom

TPS259230DRCR Details

  • Manufacturer Part Number:

    TPS259230DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS259230DRCR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS259230DRCR is 6.5V. Exceeding this voltage may damage the device.
  • To ensure the TPS259230DRCR is in a low-power state during shutdown, the EN pin should be pulled low and the input voltage should be removed. This will minimize power consumption during shutdown.
  • For optimal performance, it is recommended to follow a compact layout with minimal trace lengths and widths. Place the input capacitors close to the VIN pin and the output capacitors close to the VOUT pin. Additionally, ensure that the thermal pad is connected to a solid ground plane to improve thermal dissipation.
  • To handle thermal management, ensure that the device is mounted on a PCB with a solid ground plane to improve thermal dissipation. Additionally, consider using thermal interface materials and heat sinks to further reduce thermal resistance.
  • The recommended input capacitor value is 10uF to 22uF, and the recommended type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259230DRCR Overview

Use the download button to access the TPS259230DRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
