TPS259260DRCT - Texas Instruments

Description: Hot Swap Controller 13.8V Positive Voltage 10-Pin VSON EP T/R

Download TPS259260DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

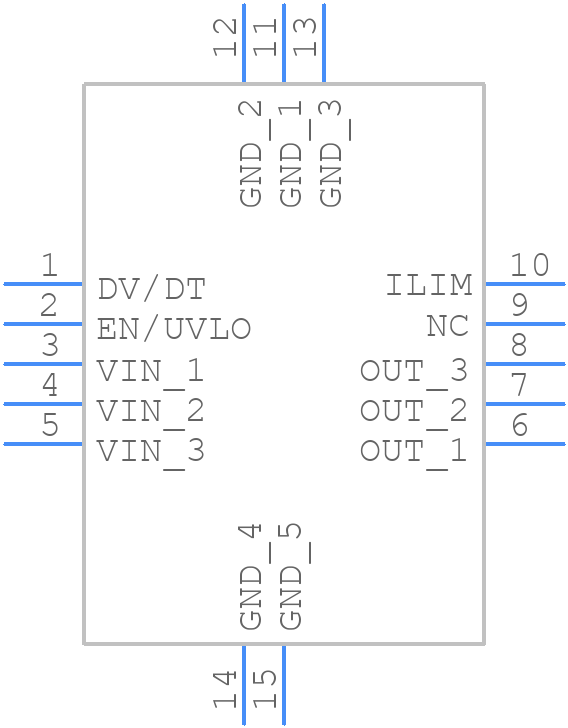

TPS259260DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259260DRCT - Texas Instruments PCB footprint - Other - Other - TPS259260DRCT
click to zoom
3D Models
TPS259260DRCT - Texas Instruments - 3D model - Other - TPS259260DRCT
click to zoom

TPS259260DRCT Details

  • Manufacturer Part Number:

    TPS259260DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    13.8 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    13.8 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS259260DRCT Frequently Asked Questions (FAQs)

  • The TPS259260DRCT can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 12V to 40V for optimal performance.
  • To ensure stability, make sure to follow the recommended layout guidelines, use a sufficient output capacitor (at least 10uF), and add a 1uF capacitor between the VIN and EN pins. Also, ensure that the input voltage is within the specified range and the output current is within the recommended range.
  • The EN (enable) pin is used to turn the device on or off. When the EN pin is high (above 1.4V), the device is enabled, and when it's low (below 0.4V), the device is disabled. You can use the EN pin to implement power sequencing or to turn the device on/off based on system requirements.
  • The output voltage of the TPS259260DRCT is adjustable using the FB (feedback) pin. The output voltage is calculated using the formula: Vout = 0.8V x (R1/R2) + 0.8V, where R1 and R2 are the resistors connected to the FB pin.
  • The TPS259260DRCT can provide up to 6A of output current, but it's recommended to operate within the specified current range of 0A to 4A for optimal performance and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259260DRCT Overview

Use the download button to access the TPS259260DRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
