TPS259271DRCR - Texas Instruments

Description: 18V, 5A, 28mΩ eFuse with BFET Driver for Reverse Current Protection

Download TPS259271DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

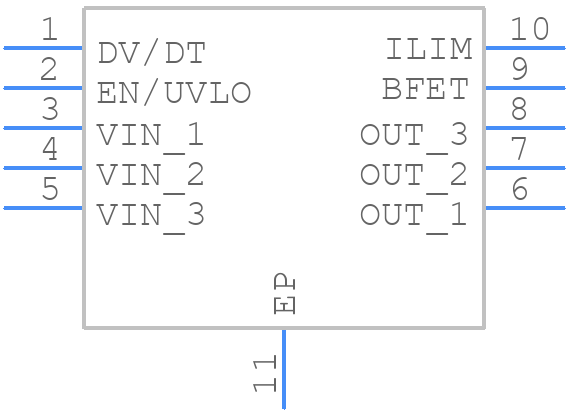

TPS259271DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259271DRCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC (S-PVSON-N10)
click to zoom
3D Models
TPS259271DRCR - Texas Instruments - 3D model - Small Outline No-lead - DRC (S-PVSON-N10)
click to zoom

TPS259271DRCR Details

  • Manufacturer Part Number:

    TPS259271DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS259271DRCR Frequently Asked Questions (FAQs)

  • The TPS259271DRCR can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, and add a 10uF ceramic capacitor between the VIN and GND pins. Additionally, use a low-ESR output capacitor and keep the output voltage ripple below 1%.
  • The minimum input capacitance required is 10uF, but it's recommended to use a 22uF or larger ceramic capacitor to ensure stability and optimal performance.
  • The TPS259271DRCR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
  • The output voltage of the TPS259271DRCR can be adjusted by changing the resistor divider ratio between the FB and VOUT pins. Use the formula in the datasheet to calculate the required resistor values for the desired output voltage.
