TPS259480LYWPR - Texas Instruments

Description: Hot Swap Voltage Controllers 3.5-V to 23-V, 12.2-mO, 8-A eFuse with bi-directional power delivery 12-DSBGA -40 to 125

Download TPS259480LYWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

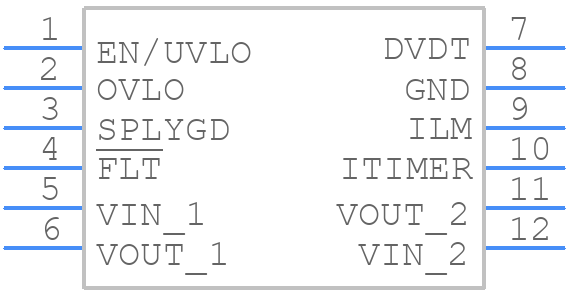

TPS259480LYWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259480LYWPR - Texas Instruments PCB footprint - Other - Other - YWP0012A 12-Ball PWCSP (DSBGA)
click to zoom
3D Models
TPS259480LYWPR - Texas Instruments - 3D model - Other - YWP0012A 12-Ball PWCSP (DSBGA)
click to zoom

TPS259480LYWPR Details

  • Manufacturer Part Number:

    TPS259480LYWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    23 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    R-XBCS-B12

  • Length:

    2.451 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    9 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XCSP

  • Package Equivalence Code:

    LGA12,4X4(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP SCALE, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    IEC 61000-4-5

  • Seated Height-Max:

    0.376 mm

  • Supply Voltage-Max (Vsup):

    23 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +1.1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.738 mm

TPS259480LYWPR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS259480LYWPR is 28V, but it's recommended to operate within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor (at least 10uF), and avoid long traces and loops in the power path. Additionally, ensure that the input voltage is within the specified range and the output current is within the recommended operating range.
  • The minimum output voltage that can be set using the EN/SET pin is 0.8V, but it's recommended to set the output voltage to at least 1V to ensure proper operation and to avoid potential issues with output voltage accuracy.
  • The TPS259480LYWPR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation and to avoid thermal shutdown. Consult the datasheet for specific derating guidelines.
  • The power dissipation of the TPS259480LYWPR can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Consult the datasheet for specific values and guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259480LYWPR Overview

Use the download button to access the TPS259480LYWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
