TPS259530DSGT - Texas Instruments

Description: 2.7V to 18V, 4A, 34mΩ eFuse with fast overvoltage protection

Download TPS259530DSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

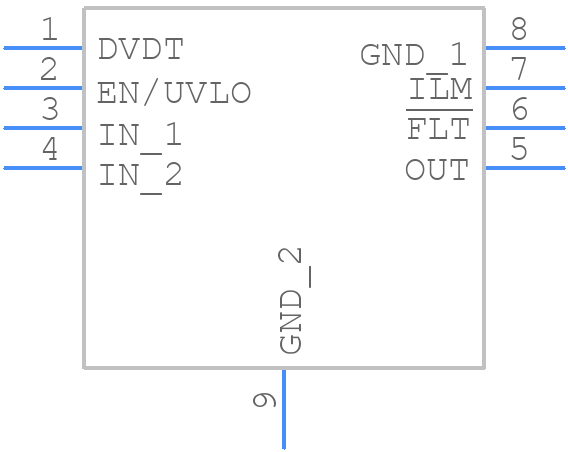

Symbol
TPS259530DSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259530DSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
TPS259530DSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

TPS259530DSGT Details

  • Manufacturer Part Number:

    TPS259530DSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    18 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.54V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS259530DSGT Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS259530DSGT is 6.5V. Exceeding this voltage may damage the device.
  • To ensure proper configuration, refer to the datasheet and application notes provided by Texas Instruments. Additionally, consider consulting with a qualified engineer or seeking guidance from TI's support team.
  • For optimal performance and thermal management, follow the recommended PCB layout and thermal design guidelines provided in the datasheet and application notes. Ensure proper heat sinking, and consider using thermal vias and thermal pads.
  • To troubleshoot issues, refer to the datasheet and application notes for troubleshooting guidelines. Check for proper input voltage, output loading, and thermal management. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
  • The TPS259530DSGT is a commercial-grade device, and its use in high-reliability or safety-critical applications should be carefully evaluated. Consult with a qualified engineer and consider using devices specifically designed for high-reliability or safety-critical applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259530DSGT Overview

Use the download button to access the TPS259530DSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
