TPS259535DSGR - Texas Instruments

Description: 2.7V to 18V, 4A, 34mΩ eFuse With Fast Overvoltage Protection

Download TPS259535DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

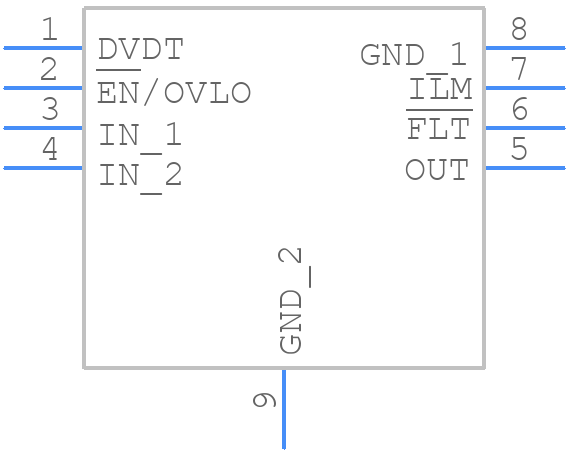

TPS259535DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259535DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
TPS259535DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

TPS259535DSGR Details

  • Manufacturer Part Number:

    TPS259535DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    18 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS259535DSGR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS259535DSGR is 6.5V. Exceeding this voltage may damage the device.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consider consulting with a Texas Instruments field applications engineer or a qualified design expert.
  • Follow the recommended layout and placement guidelines in the datasheet and application notes, keeping in mind the importance of minimizing trace lengths, using a solid ground plane, and placing decoupling capacitors close to the device.
  • Use a systematic approach to troubleshoot, checking for proper input voltage, correct configuration, and proper layout and placement. Consult the datasheet, application notes, and Texas Instruments support resources as needed.
  • The TPS259535DSGR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at higher temperatures. Consult the datasheet and application notes for specific guidance on high-temperature operation.
