TPS259541DSGR - Texas Instruments

Description: 2.7V to 18V, 4A, 34mΩ eFuse With Fast Overvoltage Protection

Download TPS259541DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

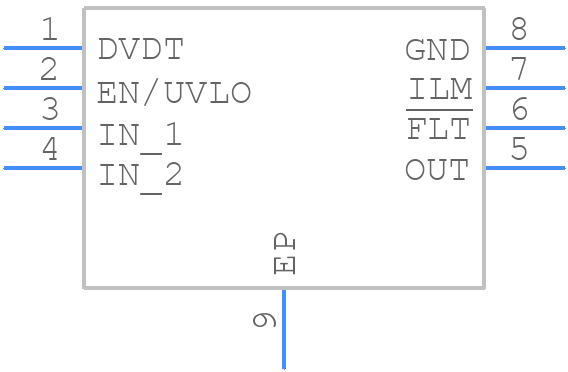

Symbol
TPS259541DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259541DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
TPS259541DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

TPS259541DSGR Details

  • Manufacturer Part Number:

    TPS259541DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    18 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.54V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS259541DSGR Frequently Asked Questions (FAQs)

  • The TPS259541DSGR can handle input voltages up to 6V, but it's recommended to keep the input voltage below 5.5V for optimal performance and to prevent damage to the device.
  • To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, and use a high-quality output capacitor with a low ESR (Equivalent Series Resistance). Additionally, ensure that the input voltage is well-regulated and the device is operated within its recommended operating conditions.
  • The minimum input capacitance required is 1uF, but it's recommended to use a 4.7uF or 10uF capacitor to ensure stability and optimal performance.
  • The TPS259541DSGR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques to keep the device temperature below 100°C.
  • The output voltage of the TPS259541DSGR can be calculated using the following formula: Vout = (R1 / R2) * (Vin - Vref), where R1 and R2 are the resistors used in the feedback network, Vin is the input voltage, and Vref is the internal reference voltage (typically 0.8V).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259541DSGR Overview

Use the download button to access the TPS259541DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
