The maximum input voltage that can be applied to the TPS259570DSGT is 6.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation.
To ensure proper configuration, refer to the datasheet and application notes provided by Texas Instruments. Additionally, consider consulting with a qualified engineer or using TI's online design tools, such as the WEBENCH Power Designer, to help with configuration and optimization.
For optimal performance and thermal management, follow the recommended layout and placement guidelines provided in the datasheet and application notes. Keep in mind the device's thermal pad, input and output capacitors, and high-current paths when designing the PCB layout.
Proper thermal management is crucial for the TPS259570DSGT. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias, heat sinks, or thermal interface materials to dissipate heat. Refer to the datasheet and application notes for specific guidance.
To minimize EMI and noise, follow best practices for PCB layout, such as separating analog and digital grounds, using shielding, and placing bypass capacitors close to the device. Additionally, consider using EMI filters or common-mode chokes to reduce noise and electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS259570DSGT Overview

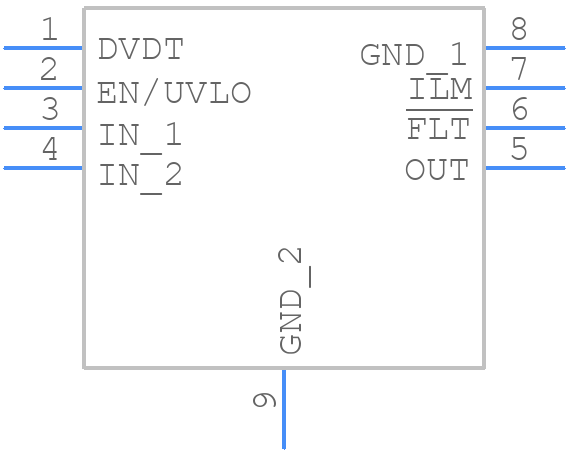

Use the download button to access the TPS259570DSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
