TPS25961DRVR - Texas Instruments

Description: Hot Swap Voltage Controllers 2.7-V to 19-V 100-mO eFuse with overvoltage, overcurrent and short-circuit protection

Download TPS25961DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

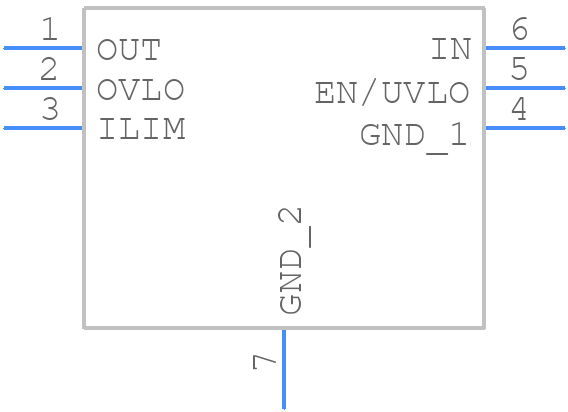

TPS25961DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25961DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-WSON (2x2)
click to zoom
3D Models
TPS25961DRVR - Texas Instruments - 3D model - Small Outline No-lead - 6-WSON (2x2)
click to zoom

TPS25961DRVR Details

  • Manufacturer Part Number:

    TPS25961DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    19 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +5.98V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS25961DRVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS25961DRVR involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The high-current paths should be kept short and wide to minimize resistance and inductance. A 4-layer PCB with a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a voltage rating of at least 2x the input voltage. The output capacitor should be a low-ESR ceramic or tantalum capacitor with a voltage rating of at least 1.5x the output voltage. The capacitance value should be chosen based on the desired output ripple and transient response.
  • The TPS25961DRVR can handle input voltages up to 18V, but the maximum recommended input voltage is 15V to ensure reliable operation and minimize power dissipation.
  • The output voltage of the TPS25961DRVR can be adjusted by changing the resistor divider ratio of the FB pin. The output voltage is calculated as VOUT = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The TPS25961DRVR can deliver up to 3A of output current, but the maximum recommended output current is 2A to ensure reliable operation and minimize power dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25961DRVR Overview

Use the download button to access the TPS25961DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
