Description:Hot Swap Voltage Controllers 2.7-V to 19-V, 85m , 0.13-2A eFuse with selectable over voltage protection clamp in leaded package 8-SO PowerPAD -40 to 125
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-current PCB design guidelines, such as using wide traces, minimizing inductance, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a solid ground plane and to avoid routing high-current traces near sensitive analog signals.
Proper thermal management is crucial for the TPS259620DDAT. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal pad should be connected to a solid ground plane to help dissipate heat. Additionally, follow the recommended operating temperature range and avoid exceeding the maximum junction temperature.
Input voltage ripple can affect the TPS259620DDAT's performance, particularly in terms of output voltage regulation and efficiency. It's recommended to use a high-quality input filter capacitor to minimize input voltage ripple. The datasheet provides guidance on input filter capacitor selection and placement.
To troubleshoot issues with the TPS259620DDAT, start by reviewing the device's operating conditions, such as input voltage, output current, and temperature. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The TPS259620DDAT is a high-reliability device, but it's essential to follow proper design and manufacturing practices to ensure the device operates within its specified parameters. Consult the datasheet and relevant industry standards (e.g., IEC 61508, ISO 26262) for guidance on using the device in safety-critical applications. Additionally, consider using redundant or fault-tolerant designs to ensure system reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS259620DDAT Overview

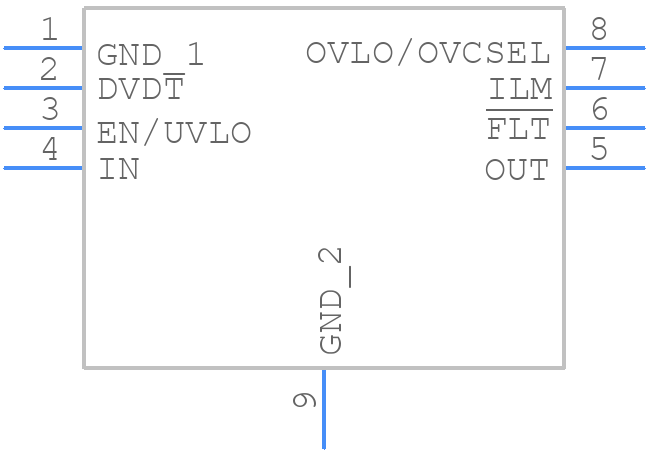

Use the download button to access the TPS259620DDAT schematic symbol, PCB footprint, and 3D model.
