TPS259630DDAR - Texas Instruments

Description: Hot Swap Voltage Controllers 2.7-19V 130MA-2A SURGE CLAMPING EFUSE

Download TPS259630DDAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

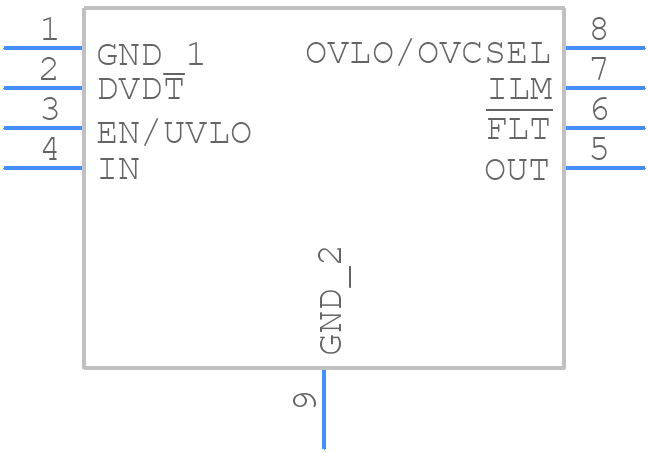

TPS259630DDAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259630DDAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom
3D Models
TPS259630DDAR - Texas Instruments - 3D model - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom

TPS259630DDAR Details

  • Manufacturer Part Number:

    TPS259630DDAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Philippines, Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-05-11

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    19 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TPS259630DDAR Frequently Asked Questions (FAQs)

  • The TPS259630DDAR can handle input voltages up to 6V, but it's recommended to keep the input voltage below 5.5V for optimal performance and to prevent damage to the device.
  • To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, and use a high-quality output capacitor with a low ESR (Equivalent Series Resistance). Additionally, ensure that the input voltage is well-regulated and the device is operated within its recommended operating conditions.
  • The minimum output capacitance required for the TPS259630DDAR is 10uF, but it's recommended to use a higher capacitance (e.g., 22uF or 47uF) to ensure stability and optimal performance.
  • The TPS259630DDAR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques to keep the device temperature below 100°C.
  • The output voltage of the TPS259630DDAR can be calculated using the following formula: Vout = (R1 / R2) * (Vref), where R1 and R2 are the resistors used in the feedback network, and Vref is the internal reference voltage (1.2V).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259630DDAR Overview

Use the download button to access the TPS259630DDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
