Description:Hot Swap Voltage Controllers 2.7-V-23-V, 7-A, 9.8-mohm eFuse with accurate current monitor and transient overcurrent blanking 10-VQFN-HR -40 to 125
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for power management ICs, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI provides guidelines for capacitor selection in the datasheet, but it's also important to consider the physical size, cost, and availability of the capacitors.
The TPS25972ARPWR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
The TPS25972ARPWR has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The datasheet provides more information on how to implement overcurrent protection, including the calculation of the OC pin resistor and capacitor values.
Yes, the TPS25972ARPWR is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's important to follow the specific requirements and guidelines for the target application, including any additional testing and validation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25972ARPWR Overview

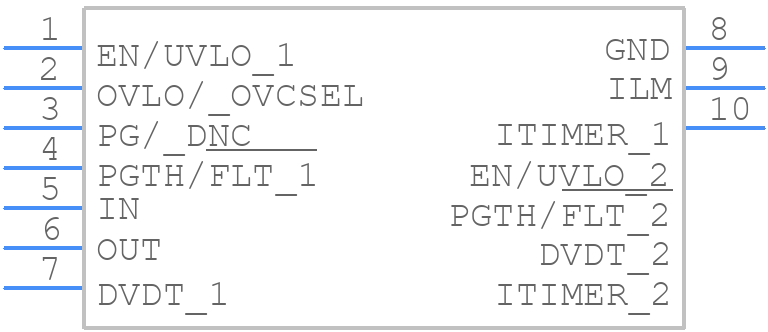

Use the download button to access the TPS25972ARPWR schematic symbol, PCB footprint, and 3D model.
