TPS259814ARPWR - Texas Instruments

Description: 2.7-V to 16-V, 10-A, 6-mΩ eFuse with transient overcurrent blanking timer

Download TPS259814ARPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

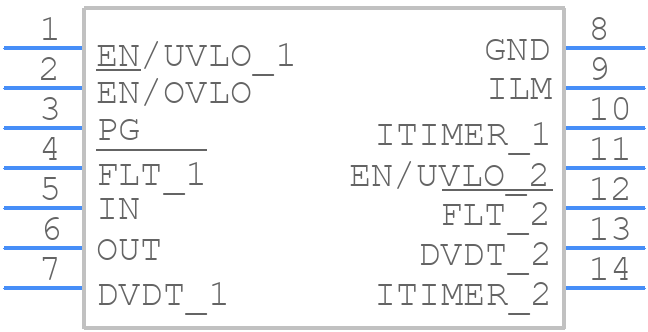

TPS259814ARPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259814ARPWR - Texas Instruments PCB footprint - Other - Other - RPW0010A-6
click to zoom
3D Models
TPS259814ARPWR - Texas Instruments - 3D model - Other - RPW0010A-6
click to zoom

TPS259814ARPWR Details

  • Manufacturer Part Number:

    TPS259814ARPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PQCC-N10

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    11 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC10,.08SQ,(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.475 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.42V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS259814ARPWR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS259814ARPWR is 6.5V. Exceeding this voltage may damage the device.
  • To ensure proper configuration, refer to the datasheet and application notes provided by Texas Instruments. Additionally, consider consulting with a qualified engineer or seeking guidance from TI's support team.
  • For optimal performance and thermal management, follow the recommended PCB layout and thermal design guidelines provided in the datasheet and application notes. Ensure proper heat sinking and thermal vias to maintain a safe junction temperature.
  • The TPS259814ARPWR is rated for operation up to 125°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking and thermal management to maintain a safe junction temperature.
  • To troubleshoot issues, refer to the datasheet and application notes for guidance on debugging and troubleshooting techniques. Consult with a qualified engineer or seek guidance from TI's support team if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259814ARPWR Overview

Use the download button to access the TPS259814ARPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
