TPS259823ONRGER - Texas Instruments

Description: highly integrated circuit protection and power management solution

Download TPS259823ONRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

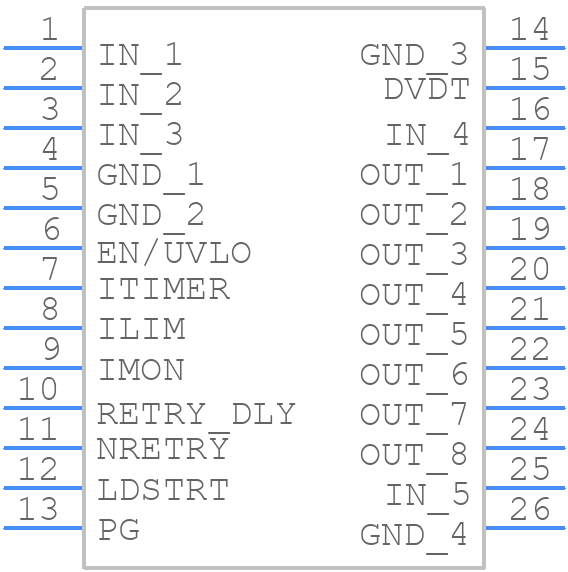

TPS259823ONRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259823ONRGER - Texas Instruments PCB footprint - Other - Other - TPS259823ONRGER-3
click to zoom
3D Models
TPS259823ONRGER - Texas Instruments - 3D model - Other - TPS259823ONRGER-3
click to zoom

TPS259823ONRGER Details

  • Manufacturer Part Number:

    TPS259823ONRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OVERVOLTAGE THRESHOLD IS 7.6V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +7.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS259823ONRGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS259823ONRGER involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor in parallel with the output capacitor to improve stability.
  • The TPS259823ONRGER can withstand input voltages up to 24V, but the recommended maximum input voltage is 18V to ensure reliable operation and prevent damage to the device.
  • The VID pins can be programmed using a resistor divider network or a digital-to-analog converter (DAC). The VID pins have an internal pull-up resistor, so an external pull-up resistor is not required. The output voltage can be calculated using the formula provided in the datasheet.
  • The TPS259823ONRGER can deliver up to 3A of output current, but the maximum output current depends on the input voltage, output voltage, and thermal conditions. It's essential to ensure that the device is properly cooled and the output current is within the recommended specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259823ONRGER Overview

Use the download button to access the TPS259823ONRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
