TPS259827ONRGET - Texas Instruments

Description: 15A, 2.7mΩ smart eFuse with accurate load current monitor and adjustable transient fault management

Download TPS259827ONRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

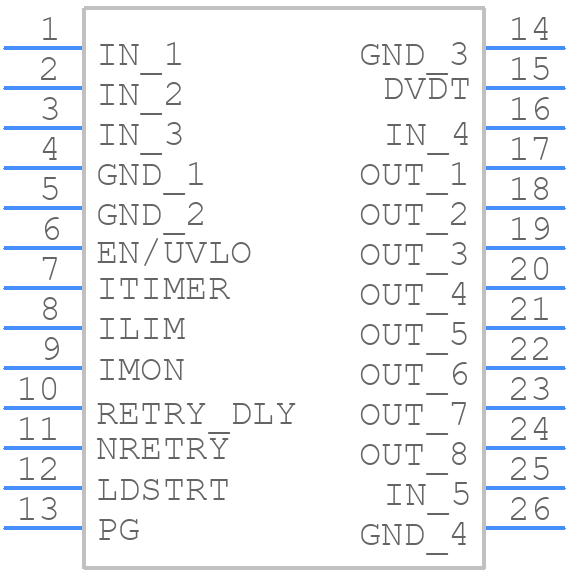

Symbol
TPS259827ONRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259827ONRGET - Texas Instruments PCB footprint - Other - Other - RGE0024M
click to zoom
3D Models
TPS259827ONRGET - Texas Instruments - 3D model - Other - RGE0024M
click to zoom

TPS259827ONRGET Details

  • Manufacturer Part Number:

    TPS259827ONRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS259827ONRGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS259827ONRGET involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input and output voltages.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with additional capacitors if necessary.
  • The TPS259827ONRGET can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability.
  • The TPS259827ONRGET is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability. Consult the datasheet for more information on thermal derating.
  • To troubleshoot issues with the TPS259827ONRGET, start by checking the input and output voltages, as well as the current draw. Verify that the component values and PCB layout meet the recommended guidelines. If issues persist, consult the datasheet and application notes for more information.
