TPS25990ARQPR - Texas Instruments

Description: TPS25990 2.9 V – 16 V, 0.79-mΩ, 60-A eFuse with PMBus® Digital Telemetry

Download TPS25990ARQPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

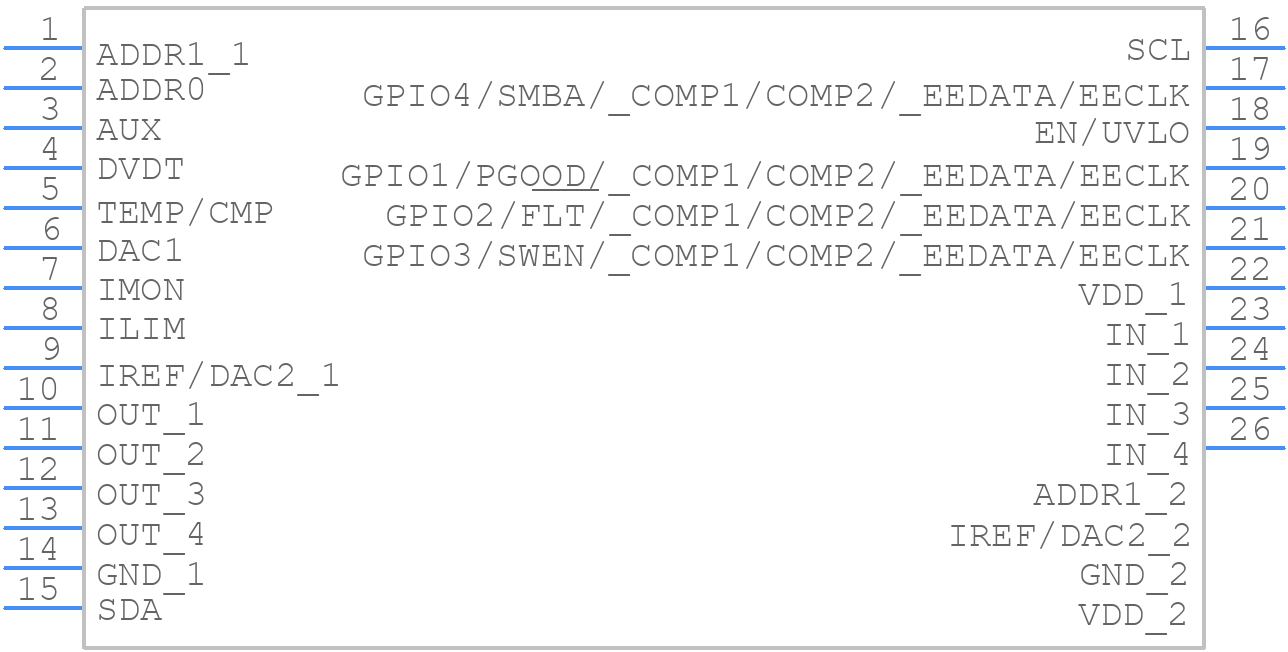

TPS25990ARQPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25990ARQPR - Texas Instruments PCB footprint - Other - Other - RQP0026A
click to zoom
3D Models
TPS25990ARQPR - Texas Instruments - 3D model - Other - RQP0026A
click to zoom

TPS25990ARQPR Details

  • Manufacturer Part Number:

    TPS25990ARQPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.9 V

  • JESD-30 Code:

    R-PQCC-N26

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    50 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC26,.18X.2(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.5 mm

TPS25990ARQPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS25990ARQPR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • Choose an input capacitor with a voltage rating that exceeds the maximum input voltage, a capacitance value between 4.7uF to 22uF, and an ESR that meets the datasheet specifications. X5R or X7R ceramic capacitors are good options.
  • The TPS25990ARQPR can deliver up to 3A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Refer to the datasheet for more information on output current capabilities.
  • The output voltage of the TPS25990ARQPR can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25990ARQPR Overview

Use the download button to access the TPS25990ARQPR schematic symbol, PCB footprint, and 3D model.
